Outlook Security Profile Configuration

This section describes Outlook security profile management through the following ActivClient Outlook Usability enhancements settings:

• Turn Off Setup Email Certificates in Microsoft Outlook on Card Insertion.

• Turn On Automatic Publication of Certificates to the Global Address List.

Outlook Security Profile Settings

To view the security settings for Outlook 2019:

1. Go to File >> Options.

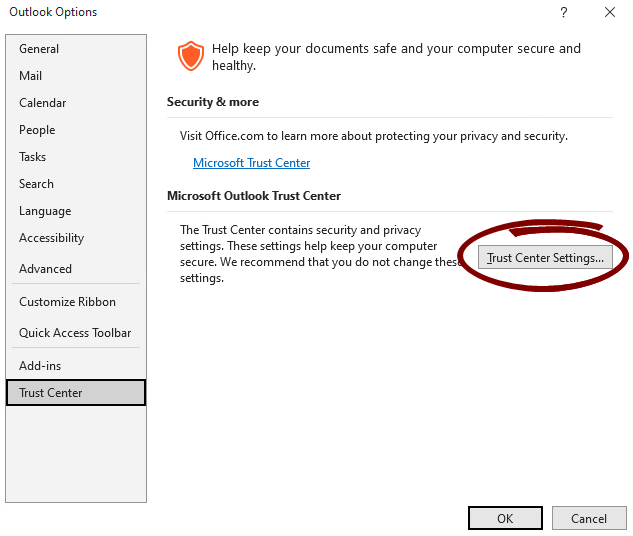

2. In the Outlook Options window, select Trust Center from the menu.

3. Click Trust Center Settings.



4. In the left pane, click Email Security.

5. In the Encrypted e-mail section, click Settings...

   The Change Security Settings window is displayed.



The Outlook security profile created by ActivClient defines the following parameters:

• Security Settings Name

• Cryptography Format

• Signing Certificate

• Hash Algorithm

• Encryption Certificate

• Encryption Algorithm

Other parameters can be defined using Microsoft policies (e.g., Add digital signature to outgoing messages).

These settings are configured automatically at smart card insertion depending on:

• The content of the inserted smart card

• ActivClient Microsoft Outlook Usability Enhancements settings

• Environment conditions as described in following section.

Outlook Security Profile Update

In default settings (i.e., when the Turn off setup email certificates in Microsoft Outlook on card insertion setting hasn't been enabled), ActivClient automatically updates the Outlook Security Profile upon card insertion provided certain conditions are met.

Conditions for Security Profile Update

General Prerequisites:

• Certificate propagation: Microsoft Certificate propagation must be enabled.

• A default Microsoft Outlook security profile is defined, and an Exchange account is set for this profile (for example POP accounts are ignored).

Conditions for Signature Certificate:

ActivClient selects the most recent signature certificate (based on the ‘Valid From’ date) that meets the following criteria:

• Validity:

  The current date must fall between the certificate's ‘Valid From’ and ‘Valid To’ dates.

• Key Usage:

  Must include 'Digital Signature' in the Key Usage extension.

• Intended Key Usage:

  • Must include CERT_KEY_DIGITAL_SIGNATURE_USAGE, or

  • Must be identified as a CAC Signature Certificate or the PIV Digital Signature Key.

Conditions for Encryption Certificate:

ActivClient selects the most recent encryption certificate (based on the ‘Valid From’ date) that meets the following criteria:

• Validity:

  The current date must fall between the certificate’s ‘Valid From’ and ‘Valid To’ dates.

• Key Usage:

  Must include 'Key Encipherment' or 'Data Encipherment' in the Key Usage extension.

• Intended Key Usage:

  • Must include CERT_KEY_ENCIPHERMENT_KEY_USAGE, or

  • Must be identified as a CAC Encryption Certificate or a PIV Key Management Key.

Additional Certificate Validation Checks:

Depending on the configuration settings, ActivClient performs additional checks on the selected signature and encryption certificates before updating the Microsoft Outlook Security profile and publishing to the Global Address List (GAL).

Email Address Consistency

The email address in the smart card certificate must match the email address configured in the Microsoft Exchange account, unless this prerequisite is disabled using the Allow Different Email Addresses in Smart Card Certificate and Microsoft Exchange Account setting.

If the Allow Different Email Addresses in Smart Card Certificate and Microsoft Exchange Account setting is enabled:

1. The email address is retrieved from the certificate RFC822 Subject alternate name.

   If the attribute is missing, the email address is retrieved from the "E=" field in the certificate's subject.

2. If online, ActivClient validates the email address against Active Directory.

3. If offline, this check is automatically bypassed.

4. If the email addresses match, ActivClient updates the Outlook profile/publishes to GAL.

5. If the email addresses do not match, then ActivClient continues to check if Outlook/the GAL needs to be updated.

   • If no update is needed (that is, the card certificates are already used to configure Outlook/publish to the GAL), then no action is performed.

   • If an update is needed, then ActivClient prompts the user by presenting the email address configured in Microsoft Exchange and the email address used in the smart card certificate. The user then makes an informed decision on whether to proceed with updating the Outlook profile/publishing to GAL.

If the Allow Different Email Addresses in Smart Card Certificate and Microsoft Exchange Account setting is disabled:

1. The email address is retrieved from the certificate RFC822 Subject alternate name.

   If the attribute is missing, the email address is retrieved from the "E=" field in the certificate's subject.

2. If online, ActivClient validates the email address against Active Directory.

3. If offline, this check is automatically bypassed.

4. If the email addresses match, ActivClient updates the Outlook profile/publishes to GAL.

5. If the email addresses do not match, these actions are not performed.

This last configuration is only applicable to customers who configure Microsoft Outlook with SuppressNameChecks.

Certificate Revocation List Check

If the Check CRL for Microsoft Outlook Security Profile Creation and Publish to GAL setting is enabled:

• If CRL check is enabled and enforced, and if CRL check is not OK (certificate is revoked or on hold, or CRL times out), the certificate is ignored and the operation (automatically configure email certificates in Microsoft Outlook and/or automatically publish certificates to the GAL) is not performed.

• If CRL check is enabled and not enforced, and if CRL check is not OK certificate is revoked or on hold, or CRL times out), the certificate is accepted and the operation (automatically configure email certificates in Microsoft Outlook and/or automatically publish certificates to the GAL) is performed but the certificate is marked as not CRL valid and an event warning is added in the Microsoft Windows event log.

• If CRL check is enabled (and enforced or non-enforced) and if CRL check is OK, the certificate is marked as CRL valid.

If the Check CRL for Microsoft Outlook Security Profile Creation and Publish to GAL setting is disabled:

• The operation (automatically configure email certificates in Outlook and/or automatically publish certificates to the GAL) is performed regardless of the CRL check status.

The description above applies if the workstation is connected to the corporate network (Active Directory is accessible). If it is not and the Active Directory is not accessible, then the automatic configuration is still performed but with two differences:

• No user account check is performed.

• No CRL check is performed (whatever the configuration for the CRL check).

Once the conditions above are met, the security profile and the encryption/signature options are always updated:

• If a security profile named ActivClient Certificates already exists, it is overwritten. The default profile setting remains unchanged:

  • If it was the default profile, it remains the default profile.

  • If it was not the default profile; it is not set as the default profile.

• If no security profile named ActivClient Certificates exists, the profile is created and set as default.

• All other security profiles (not named ActivClient Certificates) remain unaltered.

The profile creation or update is executed whether Microsoft Outlook is running or not, yet Microsoft Outlook needs to be restarted to see the updates in effect.

The Outlook security profile may be updated if new policies are configured (for example, changing the hashing algorithm from SHA-1 to SHA-256), even if certificates are not updated.

Security Profile Updated Values

The values updated by the ActivClient configuration are retrieved either from the smart card (certificates) or from the configured policies (ActivClient policies or Microsoft policies).

The following table lists the configured value for each setting when the profile is created or updated.

Setting	Value
Security settings name Default Setting field	ActivClient Certificates (always – not configurable)
Encrypt contents and attachment for outgoing message	Same value as configured in Microsoft Outlook Cryptography Options Encrypt all e-mail messages.
Add digital signature to outgoing message	Same value as configured in Microsoft Outlook Cryptography Options Sign all e-mail messages.
Send clear text signed message when sending signed message	Same value as configured in Microsoft Outlook Cryptography Options Send all signed messages as clear signed messages.
Request S/MIME receipt for all S/MIME signed message	Same value as configured in Microsoft Outlook Cryptography Options Request an S/MIME receipt for all S/MIME signed messages.
Cryptography format	S/MIME (always – not configurable through ActivClient)
‘Default security settings for this cryptographic message format’ check box	Checked (always – not configurable through ActivClient)
‘Default security settings for all cryptographic message messages’ check box	Checked (always – not configurable through ActivClient)
Signing certificate selected	The selected certificate is the most recent certificate (the most recent Valid From date) on the smart card that meets the following conditions: Validity – current date being between Valid From and Valid To date. User account – If workstation is online, the certificate email address corresponds to the email address configured for the Microsoft Exchange account. The comparison is performed by retrieving the email address in the certificate from the subjectaltName attribute, or if missing, from the 'E=' value in the subject attribute. On the Microsoft Exchange side, the comparison is performed by checking all email addresses defined in the Microsoft Exchange account (prefixed by 'SMTP:' or 'smtp:'). This allows supporting email aliases. If workstation is offline, no email address is checked. Key usage: the certificate key usage must contain the value Digital Signature. The certificate is valid. The certificate status is verified via CRL checking, only if workstation is online. This CRL check can be configured through an ActivClient policy.
Signing certificate displayed name	Certificate friendly name.
Hash algorithm	Same value as configured in ActivClient Outlook Enhancements setting Hash algorithm configured in Security Profile on card insertion. The selected algorithm cannot be updated in the Microsoft Outlook profile. It can only be updated through GPO settings. Default is SHA-256.
Encryption certificate selected	The selected certificate is the most recent certificate (the most recent Valid From date) on the smart card that meets the following conditions: Validity – current date being between Valid From and Valid To date. User account – If workstation is online, the certificate email address corresponds to the email address configured for the Microsoft Exchange account. The comparison is performed by retrieving the email address in the certificate from the subjectaltName attribute, or if missing, from the 'E=' value in the subject attribute. On the Microsoft Exchange side, the comparison is performed by checking all email addresses defined in the Microsoft Exchange account (prefixed by 'SMTP:' or 'smtp:'). This allows supporting email aliases. If workstation is offline, no email address is checked. Key usage – the certificate key usage must contain the value Key Encipherment. The certificate is valid. The certificate status is verified via CRL checking, only if workstation is online. This CRL check can be configured through an ActivClient policy.
Encryption certificate displayed name	Certificate friendly name.
Encryption algorithm	Same value as configured in the ActivClient Outlook Enhancements setting Encryption algorithm configured in Security Profile on card insertion. The selected algorithm cannot be updated in the Microsoft Outlook profile. It can only be updated through GPO settings. Default AES-256.
‘Send these certificates with signed message’ check box	Checked (always – not configurable)

For further information about the Microsoft policies that control these settings, see section Microsoft Policies Relevant to ActivID ActivClient.

Publish Certificate to GAL

The ActivClient Publish Certificate to GAL feature consists of publishing the user's encryption certificate used for secure e-mail to the user's object in the Active Directory. This allows other Microsoft Exchange users using Microsoft Outlook or Outlook Web Access to automatically access the encryption certificate to send the user encrypted emails.

The feature is the equivalent of the Publish to GAL option that can be found in the Trust Center (Outlook 2007).

Profile Selection and Email Account

The email account selection is the same as for the security profile update: applicable to Exchange accounts (that is, not applicable for Outlook accounts configured for a third-party server or using a POP3 configuration).

Configuration

The setting Turn on automatic publication of certificates to the Global Address List is applicable only if the setting Turn off setup email certificates in Outlook on card insertion is disabled or not configured (the setting is disabled by default).

Workflow

When a smart card is inserted, certificate publication to the GAL is executed after the automatic update of the Microsoft Outlook security profile.

Workflow Steps:

1. Outlook Security Profile Update:

   • If the smart card content is valid, the Microsoft Outlook security profile is updated. For details, see Security Profile Updated Values.

2. Certificate Publication to GAL:

   • If the Publish to GAL feature is enabled, ActivClient publishes the user's encryption certificate that has been set in the Outlook security profile to the GAL by updating the following attributes:

     1. The userSMIMECertificate attribute of the user's object in Active Directory (certificate in PKCS #7 format):

        • This attribute (defined in RFC 2798) contains the user’s S/MIME configuration.

          It is multi-valued and includes the user’s encryption certificate and the user’s signature certificate (all certificate chains).

        • The ActivClient Publish to GAL feature erases the existing content of this attribute and publishes the current user’s encryption and signature certificates.

        • The ActivClient Publish to GAL feature produces the same result as the native Outlook Publish to GAL feature.

     2. The userCertificate attribute of the user's object in Active Directory (certificate in DER-encoded format):

        • This attribute is multi-valued.

          It may contain all user certificates (signature, encryption, logon, EFS, etc) if certificates are issued by Microsoft CA.

        • The native Outlook Publish to GAL feature:

          • Adds new encryption certificates without deleting earlier ones, which may lead to multiple encryption certificates and cause conflicts in some configurations.

        • The ActivClient Publish to GAL feature:

          • Erases the existing content of this attribute and publishes the user’s encryption certificate.

            This behavior differs from the native Outlook behavior and ensures that the Active Directory configuration matches the local Outlook configuration, enabling secure email exchanges with the most up-to-date certificates.

Once the certificate is published, other Exchange users can send encrypted emails without manually configuring the recipient's encryption certificate.

Pin Prompt Cancellation:

If the user cancels the PIN code prompt (when required for updating the userSMIMECertificate attribute), no certificates are published to either the userSMIMECertificate or userCertificate attributes.

Error Handling:

Any errors during the Publish to GAL process are logged in the Windows Event Viewer of the user workstation. No error messages are displayed to the user directly. For further information, see Audit.

Environment Considerations

Users must have the necessary permissions to update their Active Directory object. This implies the following:

• Scenarios where the email account is configured for a different user name than the Windows account user are not supported.

• If the user is not authenticated to Active Directory, the Publish to GAL will fail.

• If the Exchange server is configured in cached mode, there might be a delay up to 24 hours before Outlook Web Access (OWA) users can access the updated GAL.

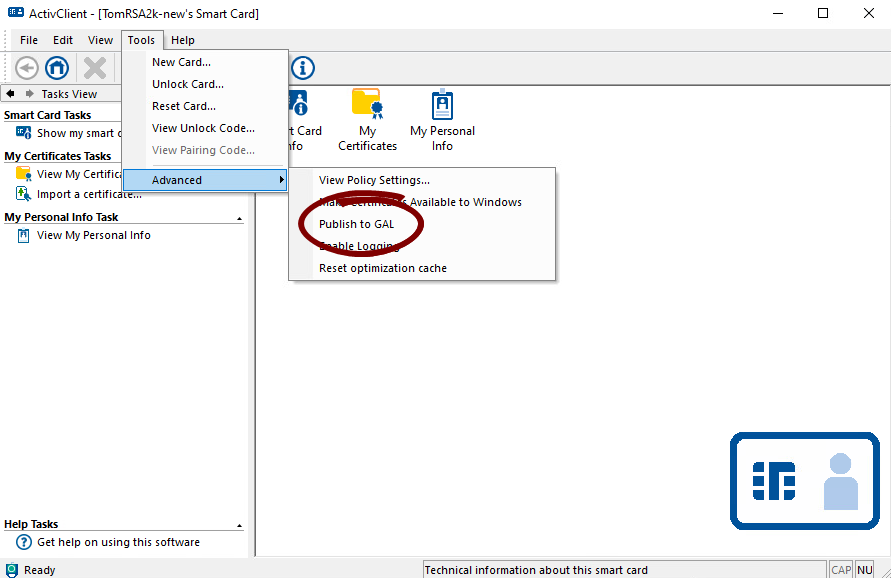

Interactive Publish to GAL Process in the User Console

In addition to the automatic Publish to GAL operations (performed in the background on card insertion), users can manually trigger the process through the ActivClient User Console.

This option provides a similar functionality which:

• Performs both the Microsoft Outlook profile configuration and the Publish to GAL operations as described above.

  This occurs regardless of whether the following policies (which control automatic execution) are enabled or disabled:

  • Turn Off Setup Email Certificates in Microsoft Outlook on Card Insertion.

  • Turn On Automatic Publication of Certificates to the Global Address List.

• Displays success and error messages via dialog boxes, in addition to logging events in the Windows Event Viewer.

• Prompts the user to authenticate to Active Directory if required for the operation.

• Follows the same Certificate Revocation List (CRL) check configurations as used in the automatic mode.

Audit

ActivClient enables the auditing of the two operations described earlier – Outlook security profile configuration and Publish certificate to GAL.

ActivClient audits the successes and failures of these operations and logs them in the Windows Event Viewer.

To be notified of unexpected events, it is recommended that you filter the audited information using the Event Viewer filters.

By default, the ActivClient auditing function is enabled. To disable the option, see Disable audit for Microsoft Outlook security profile creation and Publish to GAL.

The ActivClient events are formatted following Microsoft logging guidelines and are:

• Logged in the HID Global section of the Applications and Services Logs of the Windows Event Viewer.

• Labeled with ActivClient as the Source.

Each event contains the following elements:

• Event Type

• Information

• Warning

• Error

• Event ID

For the complete list of ID codes, see the below table of Audited Event ID codes List.

• Event Description:

Specifies the username and domain; and reason of failure when applicable.

To do so, on the domain controller, go to the Default Domain Controller Security Settings, Security Settings, Local Policies, Audit Policy, and enable Audit directory service access.

Then, for each user, specify the attributes that should be audited: open the Advanced Security Settings for the user, Auditing tab, and select Write userSMIMECertificate and Write userCertificate.

For further information, refer to the Microsoft documentation.

Audited Event ID codes List:

Event ID	Event Type	Category	Description
257	Information	Outlook Profile Update	Outlook security profile updated
258	Information	Publish to GAL	Publish to GAL completed
513	Warning	Outlook Profile Update	No applicable update
514	Warning	Publish to GAL	No applicable update
515	Warning	Outlook Profile Update	CRL check failed for signing certificate for the following reason: Revoked, Offline, or Other
516	Warning	Outlook Profile Update	CRL check failed for encryption certificate for the following reason: Revoked, Offline, or Other
517	Warning	Publish to GAL	CRL check failed for signing certificate for the following reason: Revoked, Offline, or Other
518	Warning	Publish to GAL	CRL check failed for encryption certificate for the following reason: Revoked, Offline, or Other
519	Warning	Outlook Profile Update	Impossible to reach Active Directory
520	Warning	Publish to GAL	Impossible to reach Active Directory
521	Warning	Publish to GAL	Your certificates were not published to the Global Address List.To publish successfully, start the Publish to GAL operation again, and enter the PIN when prompted to do so.
769	Error	Outlook Profile Update	No Exchange account
770	Error	Outlook Profile Update	No valid certificate found
771	Error	Outlook Profile Update	No valid email address in signing certificate
772	Error	Outlook Profile Update	No valid email address in encryption certificate
773	Error	Publish to GAL	Access Denied
774	Error	Outlook Profile Update	CRL check failed for signing certificate for the following reason: Revoked, Offline, or Other
775	Error	Outlook Profile Update	CRL check failed for encryption certificate for the following reason: Revoked, Offline, or Other
776	Error	Publish to GAL	CRL check failed for signing certificate for the following reason: Revoked, Offline, or Other
777	Error	Publish to GAL	CRL check failed for encryption certificate for the following reason: Revoked, Offline, or Other
778	Error	Publish to GAL	Your certificates were not published to the Global Address List. MAPI error code CAPI error code
