Procedures for Managing the Transport Key

The Transport Key (TK) is used internally to secure communications between the Credential Provider (a plug-in to ActivID CMS that is in charge of communication with the CA) and the core ActivID CMS components that communicate to the device.

For Entrust, the TK is also used as an additional layer of security when private keys are exchanged between ActivID CMS and Entrust (for key escrow and key recovery operations).

After you have installed ActivID CMS, a default transport certificate is installed the first time you launch the application. The TK is stored in either an HSM A Hardware Security Module (HSM) securely stores secret key material. They are similar to large-storage, multisession smart cards. However, unlike smart cards, they are used mainly on the server side of a system., or in software (depending on your environment and requirements).

  • The default key length is 2048.

  • The default certificate subject DN for the automatically installed certificate is: CN=ActivIdentity self-generated transport certificate.

You can use any of the CA’s standard encryption templates for the TK certificate. ActivID CMS will not remind you to check the expiration/revocation of the TK certificate.

Important: It is recommended that you set up a reminder to ensure that you always renew the credentials before they expire.

You can generate either a TK and a Certificate Signing Request (CSR), or a TK and a self-signed certificate.

  1. Go to the Repositories Management page.

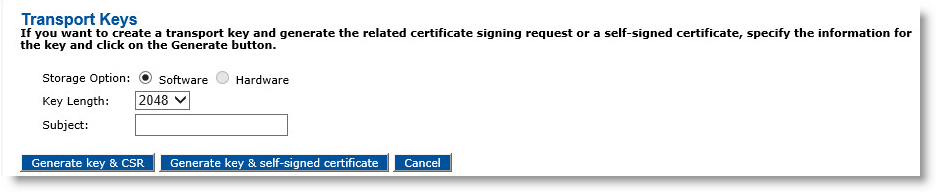

  2. In the Certificate Authorities panel of the page, click Manage Transport Keys. The Transport Keys page appears:

  3. For Storage Option, select either Software or Hardware.

    It is recommended that you use an HSM (the hardware option) for production environments. For test or lab environments where ActivID CMS is reinstalled several times with the same HSM, ActivID CMS deletes any previous TK present in the HSM the first time that it is started after the installation.

  4. From the Key Length drop-down list, select a key length.

  5. For Subject, enter CN=Transport key (this being the default certificate).

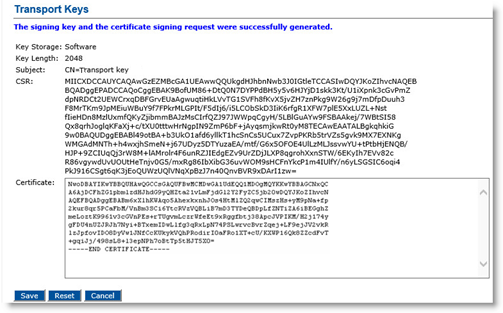

  6. Click Generate key & CSR, displays a .txt file that contains the CSR.

  7. Use the CSR to generate a certificate on your CA, and save this certificate as a base64-encoded text file.

    8. Warning! You must use a CA The Certificate Authority (CA) issues and manages security credentials and public keys for message encryption in a networks environment. that accepts a base64 certificate request and is able to generate/output a certificate file from it.
    If you don’t have such a CA, or you prefer not to use a CA, then ActivID CMS automatically sets the transport key certificate.

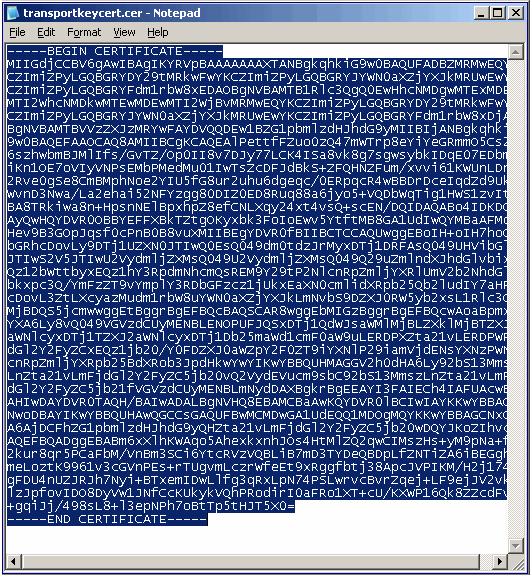

  8. Copy the .txt file content using a text editor (such as Notepad), and then close the window.

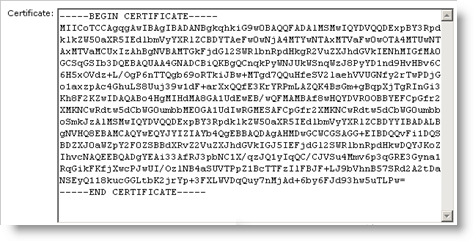

  9. Paste the saved content into the Certificate box, and then click Save.

  10. When the confirmation message appears, click Done.

  1. Go to the Repositories Management page.

  2. In the Certificate Authorities panel of the page, click Manage Transport Keys. The Transport Keys page appears:

  3. For the Storage Option, select either Software or Hardware.

  4. From the Key Length drop-down box, make a selection.

  5. For Subject, enter the default certificate: CN=Transport Key.

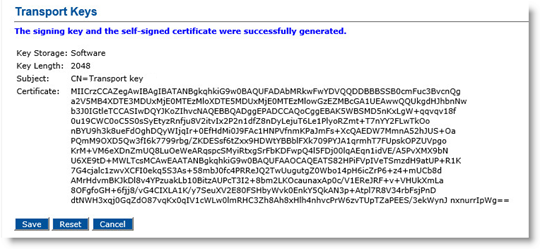

  6. Click Generate key & self-signed certificate.

  7. Click Save.

  8. When the confirmation message appears, click Done.

Before you can update a TK certificate, the CA must be installed, configured, and running. In addition, you must have already generated a Certificate Signing Request (CSR) in base64 format.

  1. Go to the Repositories Management page.

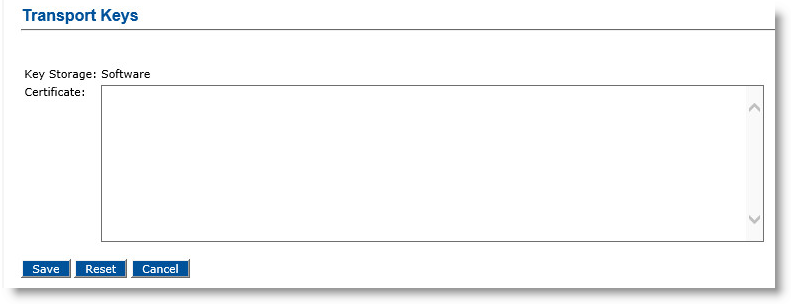

  2. In the Certificate Authorities panel of the page, click Manage Transport Keys. The Transport Keys page appears.

  3. Click Update.

  4. Download the certificate from your CA based on the CSR you previously generated (which must be in base64 format).

    5. Important: You must use a CA that accepts a base64 certificate request and can generate/output a certificate file. If you do not have this CA type, or you prefer not to use a CA, then ActivID CMS automatically sets the transport key certificate.

  5. Save the certificate as Transport.txt.

  6. Open the file and copy its content.

  7. Paste the content into the Certificate box, and then click Save.

  8. When the confirmation message appears, click Done.

  1. Go to the Repositories Management page.

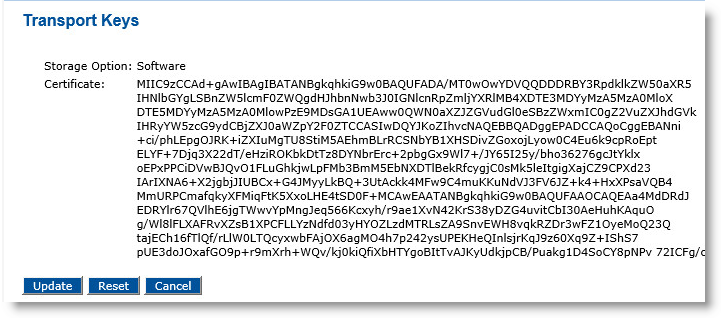

  2. In the Certificate Authorities section of the page, click Manage Transport Keys. The Transport Keys page appears:

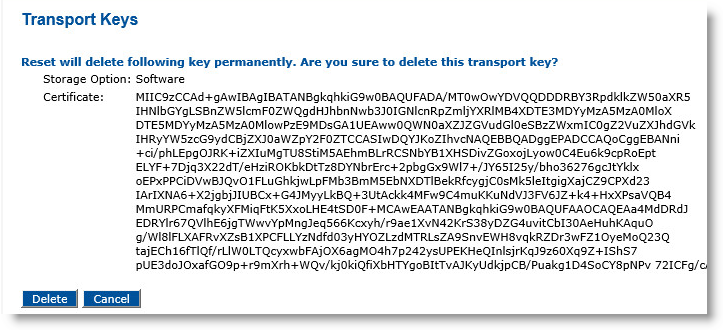

  3. Click Reset.

  4. Click Delete.

  5. When the confirmation message appears, click Continue.
