Configuring Secure Socket Layer (SSL) Encryption

1. Start the Oracle Wallet Manager.



2. Create a new wallet with the Standard wallet type.



3. Click Yes to create a new certificate request.



4. Set the Common Name to match the Fully Qualified Domain Name (FQDN).



5. Right-click on the certificate and choose Export Certificate Request… then issue a Web Server certificate with this request.

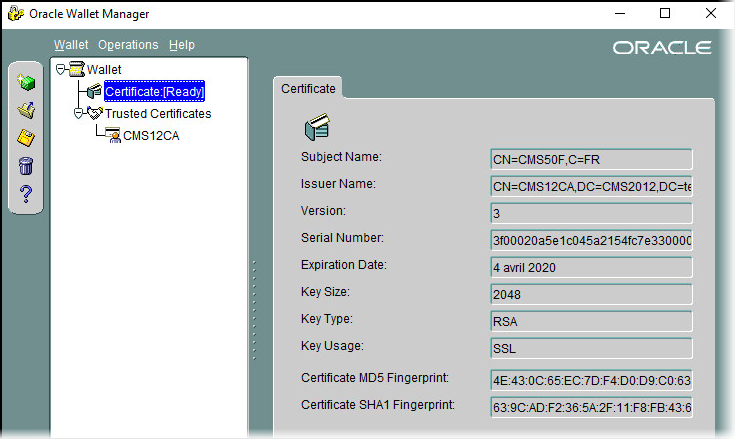

6. Install the .p7b file generated, which contains the root certificate and the SQL server certificate. The certificate issued is:



7. Select the Wallet.



8. Check the Auto Login option and save the wallet in the <Oracle Home>\ServerWallet folder.

9. Start the Net Manager.



10. Configure the SSL Encryption to use the new wallet and save the network configuration.

    The sqlnet.ora configuration is:

    Copy

    SQLNET.AUTHENTICATION_SERVICES= (BEQ, TCPS, NTS)
    SSL_VERSION = 0
    #TRACE_LEVEL_CLIENT = SUPPORT
    SSL_CLIENT_AUTHENTICATION = FALSE
    SQLNET.ENCRYPTION_TYPES_SERVER= (AES256, AES192, AES128, 3DES168)
    WALLET_LOCATION =
          (SOURCE =
            (METHOD = FILE)
            (METHOD_DATA =
              (DIRECTORY = C:\app\Administrator\virtual\product\12.2.0\dbhome_1\ServerWallet)
            )
          )
    SSL_CIPHER_SUITES= (SSL_RSA_WITH_AES_256_GCM_SHA384, SSL_RSA_WITH_AES_128_CBC_SHA256, SSL_RSA_WITH_AES_128_CBC_SHA, SSL_RSA_WITH_AES_128_GCM_SHA256, SSL_RSA_WITH_3DES_EDE_CBC_SHA)
    ADR_BASE = C:\app\Administrator\virtual\product\12.2.0\dbhome_1\log

11. Update the tnsnames.ora file and add a new SID CMSDBSSL using TCPS protocol and the port 2484:

    Copy

    CMSDB =
      (DESCRIPTION =
        (ADDRESS_LIST =
          (ADDRESS = (PROTOCOL = TCP)(HOST = CMS50F)(PORT = 1521))
        )
        (CONNECT_DATA =
          (SERVICE_NAME = CMSDB)
        )
      )

    CMSDBSSL =
      (DESCRIPTION =
        (ADDRESS_LIST =
          (ADDRESS = (PROTOCOL = TCPS)(HOST = CMS50F)(PORT = 2484))
        )
        (CONNECT_DATA =
          (SERVICE_NAME = CMSDB)
        )
      )

    LISTENER_CMSDB =
      (ADDRESS = (PROTOCOL = TCP)(HOST = CMS50F)(PORT = 1521))
      (ADDRESS = (PROTOCOL = TCPS)(HOST = CMS50F)(PORT = 2484))


12. Update the listener.ora file and add the new wallet and the new listening port:

    Copy

    SID_LIST_LISTENER =
      (SID_LIST =
        (SID_DESC =
          (GLOBAL_DBNAME = CMSDB)
          (SID_NAME = CMSDB)
        )
      )

    SSL_CLIENT_AUTHENTICATION = FALSE

    WALLET_LOCATION =
      (SOURCE =
        (METHOD = FILE)
        (METHOD_DATA =
          (DIRECTORY = C:\app\Administrator\virtual\product\12.2.0\dbhome_1\ServerWallet)
        )
      )

    LISTENER =
      (DESCRIPTION_LIST =
        (DESCRIPTION =
          (ADDRESS = (PROTOCOL = TCP)(HOST = CMS50F)(PORT = 1521))
        )
        (DESCRIPTION =
          (ADDRESS = (PROTOCOL = TCPS)(HOST = CMS50F)(PORT = 2484))
        )
      )

    ADR_BASE_LISTENER = C:\app\Administrator\virtual\product\12.2.0\dbhome_1\log

    #TRACE_LEVEL_LISTENER = ADMIN



13. Update the Firewall and open the new port 2484.



14. Stop/Start the listener service.

On the ActivID CMS machine, execute the same steps performed for the database server but issue a SSL certificate for client authentication (use, for example, the "CMS Logon for Smartcard Admin" template on CMS 2012 CA).

1. Save the Wallet in the <Oracle Home>\ClientWallet folder.

2. Start Net Manager and configure the SSL Configuration to use this wallet.

   The sqlnet.ora on the client is:

   Copy

   SQLNET.AUTHENTICATION_SERVICES= (BEQ, TCPS, NTS)
       SSL_VERSION = 0
       #TRACE_LEVEL_CLIENT = ADMIN
       #TRACE_LEVEL_SERVER = ADMIN
       NAMES.DIRECTORY_PATH= (TNSNAMES, EZCONNECT)
       SSL_CLIENT_AUTHENTICATION = FALSE

       WALLET_LOCATION =
         (SOURCE =
           (METHOD = FILE)
           (METHOD_DATA =
             (DIRECTORY = C:\app\client\Administrator\product\12.2.0\client_64\ClientWallet)
           )
         )

       SSL_CIPHER_SUITES= (SSL_RSA_WITH_AES_256_GCM_SHA384, SSL_RSA_WITH_AES_128_CBC_SHA256, SSL_RSA_WITH_AES_128_CBC_SHA, SSL_RSA_WITH_AES_128_GCM_SHA256, SSL_RSA_WITH_3DES_EDE_CBC_SHA)

       ADR_BASE = C:\app\client\Administrator\product\12.2.0\client_64\log

3. Update the tnsnames.ora file and add a new SID CMSDBSSL using TCPS protocol and the port 2484 (the host name is the database host name):

    CMSDB =
      (DESCRIPTION =
        (ADDRESS_LIST =
          (ADDRESS = (PROTOCOL = TCP)(HOST = cms50F)(PORT = 1521))
        )
        (CONNECT_DATA =
          (SERVICE_NAME = cmsdb)
        )
      )

    CMSDBSSL =
      (DESCRIPTION =
        (ADDRESS_LIST =
          (ADDRESS = (PROTOCOL = TCPS)(HOST = cms50F)(PORT = 2484))
        )
        (CONNECT_DATA =
          (SERVICE_NAME = cmsdb)
        )
      )
