Installing the Keyfactor EJBCA Server

This section provide some guidance as to how to configure the EJBCA server, but you also need to refer to the Keyfactor documentation for more details.

Note: The information in this section is based on the Keyfactor EJBCA Software Appliance 2.7.0.

Prerequisites

  • The Keyfactor server must be up and running.

    • Note: The Keyfactor server is installed from an image provided by Keyfactor.

  • Some basic configuration must already be performed:

    • Network configuration

    • Database selection

    • HSM selection

  • The following REST API endpoints must be enabled:

    • REST Certificate Management (v1 and v2)

    • REST End Entity Management (v1 and v2)

    • REST Configdump

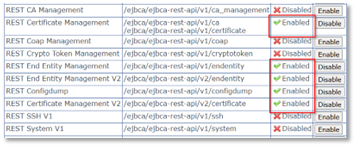

    Table of REST API endpoints for EJBCA displaying the required endpoints set to Enabled and outlined in red

Creating the CA in EJBCA

The CA creation is performed in two steps. For more information, refer to the EJBCA documentation.

  1. Create a Crypto Token.

  2. Create the CA using that token, with the following requirement:

    • Uncheck Enforce unique DN:

    EJBCA settings for creating a Crypto Token with Enforce unique DN setting unchecked and outlined in red

Important:

Enrolling the CMS Agent on the EJBCA Server

  • Using the CA created above, enroll a specific agent for CMS.

  • Either use EMPTY / ENDUSER, or a specific End Entity and Certificate profile (respectively, Certificate Type and Certificate Subtype in the RA web screen).

  • Key-pair generation must be set to By the CA.

  • Download the PKCS#12 for the new End Entity.

    Important: Keep this .p12 file and its password; it will be used during CMS configuration (specifically, for the PKCS#12 file containing the client certificate and key and Password for the PKCS#12 file containing the client certificate and key fields in step 12 of Configuring the Keyfactor EJBCA Certificate Authority).

  • Copy the certificate serial number, and use it to register the user as a Super Administrator.

End Entity and Certificate Profiles

Note: Both the End Entity profile name and the Certificate profile name will be used by CMS: the End-Entity profile / Certificate profile pair (separated by a colon) is used as the full template name by CMS when configuring an application in a device policy.

This section highlights the basic procedure to integrate an EJBCA with CMS. Specific implementations using PIV and CIV templates are provided below in PIV/CIV Support.

Certificate Profiles

Create the certificate profiles first.

Note: You can either use the ENDUSER certificate profile directly, or clone it if it needs to be adapted to your requirements.

End Entity Profiles

Create dedicated End Entity profiles, according to your needs:

  • One for the device-generated certificates (authentication, signature)

  • One for the CA-generated recoverable certificates (encryption)

Configure the following properties:

Subject DN Attributes

The structure of the Subject DN must be completely described, down to the maximum number of each attribute: CN, DC, OU, etc.

For example:

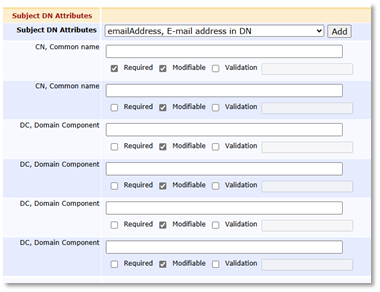

EJBCA Subject DN Attributes section showing various CN and DC attributes each with 3 checkboxes: Required, Modifiable and Validation

Main Certificate Data

  • Select the Certificate profiles that can be issued using the End Entity profile. You may group several certificate profiles in one End Entity profile, provided that they all share the same token configuration (either User Generated or P12 file).

Other Data

  • Set the Default value for the Number of allowed requests to "1".

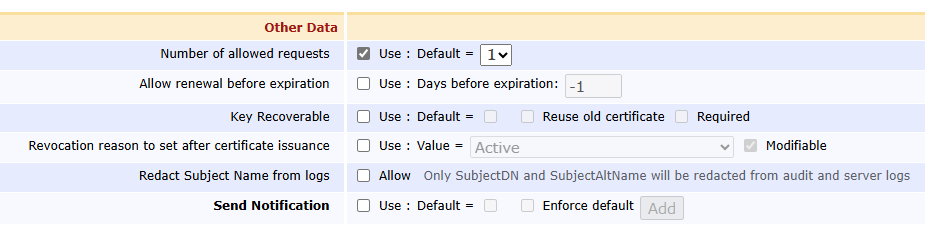

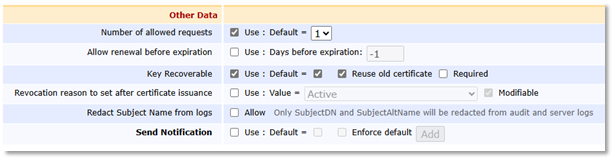

EJBCA Other Data section showing various settings including the Number of allowed requests set with a Default value of 1

PIV/CIV Support

NACI

Add a Custom Certificate Extension: NACI

Its Object Identifier (OID) is: 2.16.840.1.101.3.6.9.1.

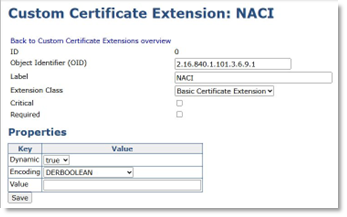

EJBCA Custom Certificate Extension: NACI settings including the OID, Label, and Extension Class, as well as various options and properties

PIV_AUTHENTICATION Certificate Profile

Clone the ENDUSER certificate profile, and set the following properties:

Permissions

  • Allow Validity Override

  • Allow Extension Override: 2.16.840.1.101.3.6.9.1

  • Allow Subject DN Override by CSR

  • Use Certificate Storage

  • Store Certificate Data

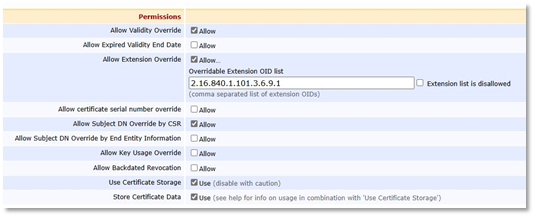

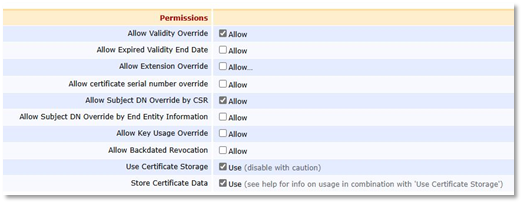

EJBCA Permissions settings with Allow Validity Override, Allow Extension Override, Allow Subject DN Override by CSR, Use Certificate Storage and Store Certificate Data options enabled

X.509v3 Extensions

  • Key Usage: Digital Signature

  • Extended Key Usage: Any Purpose, Client Authentication, MS Smart Card Logon

  • Certificate Policies: 2.16.840.1.101.3.2.1.3.13

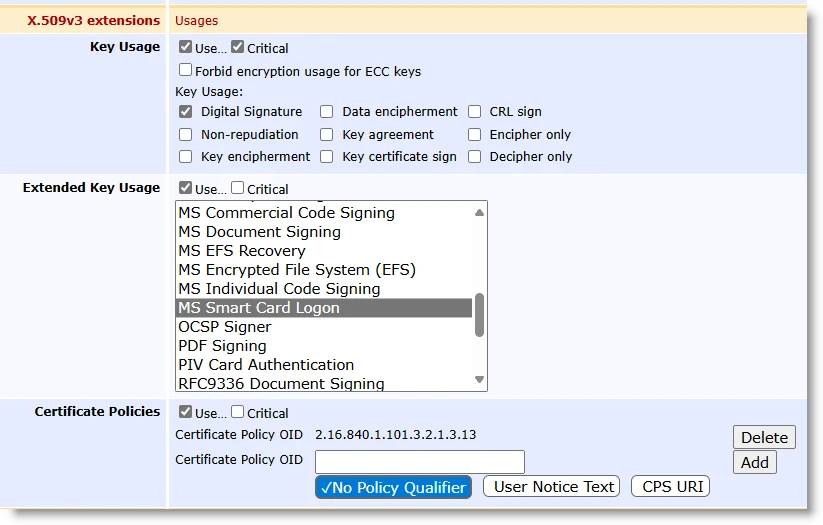

EJBCA X.509v3 Extensions settings with the Key Usage set to Digital Signature and the Extended Key Usage drop-down list deployed with MS Smart Card Login selected

Important: In order for users to be able to authenticate to the CMS Self-Service portal, the Extended Key Usage must be set to use MS Smart Card Logon (see above screenshot).

CARD_AUTHENTICATION Certificate Profile

Clone the ENDUSER certificate profile, and set the following properties:

Permissions

  • Allow Validity Override

  • Allow Extension Override: 2.16.840.1.101.3.6.9.1

  • Allow Subject DN Override by CSR

  • Use Certificate Storage

  • Store Certificate Data

EJBCA Permissions settings with Allow Validity Override, Allow Extension Override, Allow Subject DN Override by CSR, Use Certificate Storage and Store Certificate Data options enabled

X.509v3 Extensions

  • Key Usage: Digital Signature

  • Extended Key Usage: PIV Card Authentication

  • Certificate Policies: 2.16.840.1.101.3.2.1.3.17

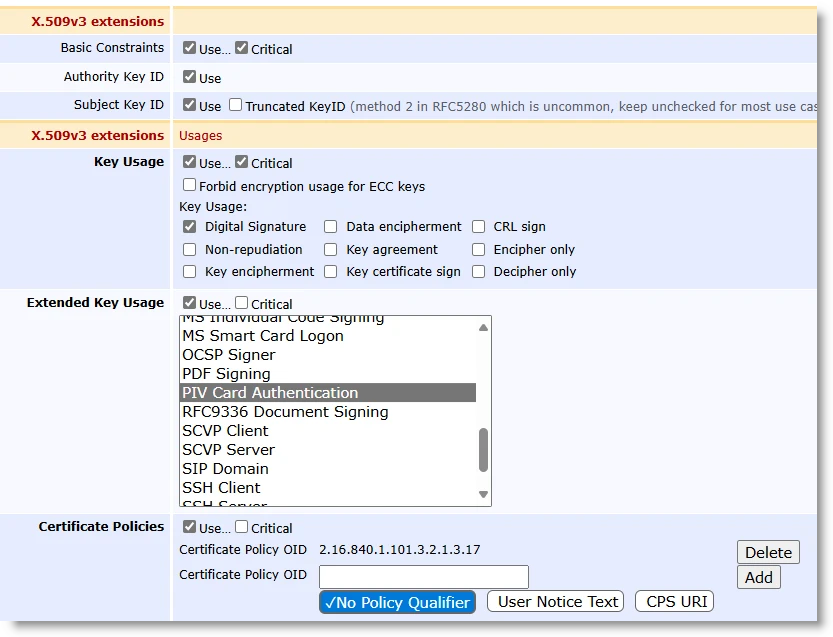

EJBCA X.509v3 Extensions settings with the Key Usage set to Digital Signature and the Extended Key Usage drop-down list deployed with PIV Card Authentication selected

PIV_DIGITAL_SIGNATURE Certificate Profile

Clone the ENDUSER certificate profile, and set the following properties:

Permissions

  • Allow Validity Override

  • Allow Subject DN Override by CSR

  • Use Certificate Storage

  • Store Certificate Data

EJBCA Permissions settings with Allow Validity Override, Allow Extension Override, Allow Subject DN Override by CSR, Use Certificate Storage and Store Certificate Data options enabled

X.509v3 Extensions

  • Key Usage: Digital Signature, Non-repudiation

  • Extended Key Usage: Client Authentication, Email Protection

  • Certificate Policies: 2.16.840.1.101.3.2.1.3.6

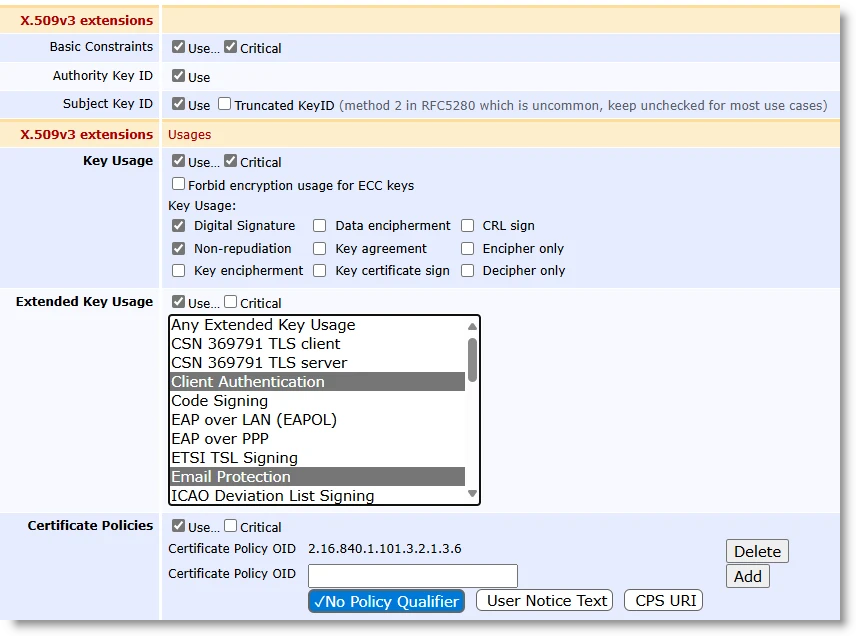

EJBCA X.509v3 Extensions settings with the Key Usage set to Digital Signature and Non-repudiation, and the Extended Key Usage drop-down list deployed with Client Authentication and Email Protection selected

PIV_ENCRYPTION Certificate Profile

Clone the ENDUSER certificate profile, and set the following properties:

Available Key Algorithms

Only allow RSA keys that are 2048 bits or higher.

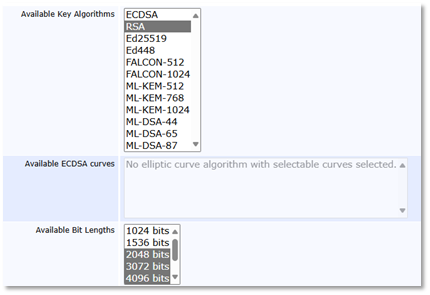

EJBCA Available Key Algorithms options with drop-down list set to RSA and Available Bit Lengths drop-down list deployed with 2048 bits, 3072 bits and 4096 bits highlighted

Permissions

  • Allow Validity Override

  • Allow Subject DN Override by CSR

  • Use Certificate Storage

  • Store Certificate Data

EJBCA Permissions settings with Allow Validity Override, Allow Extension Override, Allow Subject DN Override by CSR, Use Certificate Storage and Store Certificate Data options enabled

X.509v3 Extensions

  • Key Usage: Key encipherment, Key agreement

  • Extended Key Usage: Email Protection

  • Certificate Policies: 2.16.840.1.101.3.2.1.3.6

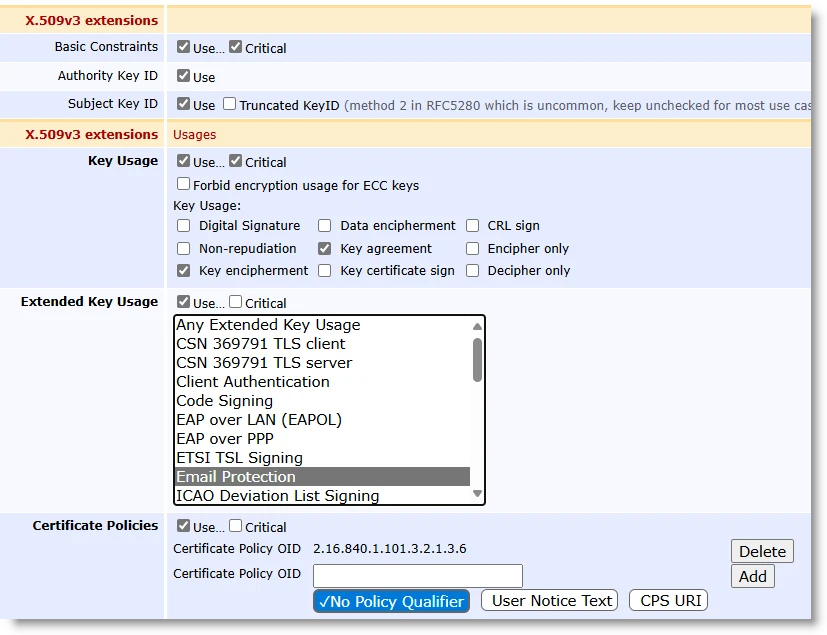

EJBCA X.509v3 Extensions settings with the Key Usage set to Key encipherment, and the Extended Key Usage drop-down list deployed with Email Protection selected

PIV End Entity Profile

Create an End Entity profile name "PIV" and configure the following properties:

Subject DN Attributes

The structure of the Subject DN must be completely described, down to the maximum number of each attribute: CN, DC, OU, etc.

For example:

EJBCA Subject DN Attributes section showing various CN and DC attributes each with 3 checkboxes: Required, Modifiable and Validation

Main Certificate Data

  • Select the Certificate Profiles that can be issued using the End Entity profile. You may group several certificate profiles in one End Entity profile, provided that they all share the same token configuration (see below). Hence for this specific profile, you can group PIV_AUTHENTICATION, PIV_DIGITAL_SIGNATURE, and CARD_AUTHENTICATION.

  • Select PIV_AUTHENTICATION as the Default Certificate Profile.

  • The Default Token and the Available Tokens must be set to User Generated.

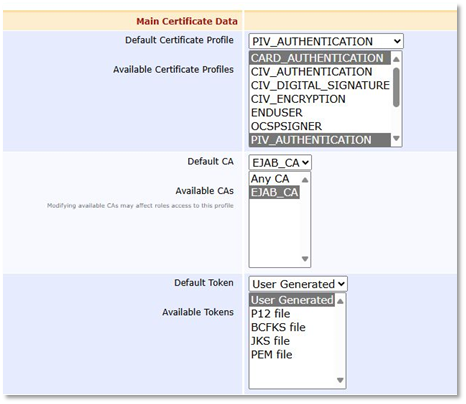

EJBCA Main Certificate Data section showing various settings including the Default Certificate Profile set to PIV_AUTHENTICATION, and the Default Token and Available Tokens set to User Generated

Other Data

  • Set the Default value for the Number of allowed requests to "1".

  • Leave all other options unchecked.

EJBCA Other Data section showing various settings including the Number of allowed requests set with a Default value of 1

PIV_ENCRYPTION End Entity Profile

Create an End Entity profile named "PIV_ENCRYPTION" and configure the following properties:

Subject DN Attributes

The structure of the Subject DN must be completely described, down to the maximum number of each attribute: CN, DC, OU, etc.

For example:

EJBCA Subject DN Attributes section showing various CN and DC attributes each with 3 checkboxes: Required, Modifiable and Validation

Main Certificate Data

  • Select the PIV_ENCRYPTION Certificate Profile that can be issued using the End Entity profile.

  • Select PIV_ENCRYPTION as the Default Certificate Profile.

  • The Default Token and the Available Tokens must be set to P12 file.

EJBCA Main Certificate Data section showing various settings including the Default Certificate Profile set to PIV_ENCRYPTION, and the Default Token and Available Tokens set to P12 file

Other Data

  • Set the Default value for the Number of allowed requests to "1".

  • Leave all other options unchecked.

EJBCA Other Data section showing various settings including the Number of allowed requests set with a Default value of 1

CIV Support

  • For CIV, create the following Certificate Profiles: CIV_AUTHENTICATION, CIV_DIGITAL_SIGNATURE, and CIV_ENCRYPTION.

  • Start from the PIV equivalents, and remove:

    • NACI Support from CIV_AUTHENTICATION (2.16.840.1.101.3.6.9.1 Extension Override)

    • PIV-specific OIDs in Certificate Policies

  • Create similar CIV and CIV_ENCRYPTION End Entity profiles as well.
