Devices

You can select a device by clicking on the respective tile with the device's interface in the Devices view.

You can also select a device from any view via the token selector in the right of the title bar.

Authenticate to a selected device from any view by clicking the authentication button in the right of the title bar.

A closed red lock symbol indicates that the PIN hasn't been entered, and the device is locked.
Upon entering the PIN, the symbol changes to an open lock and turns blue , indicating successful authentication.

This authentication applies to future actions performed with the device, although some actions may still require the PIN for confirmation.

If you do not authenticate to a token using the authentication button, some operations will prompt for authentication automatically.

To change the PIN for any connected token, click the Change PIN action link in the device's interface in the Devices view, or click the kebab menu button in the top-right corner of that token's interface. (You do not need to have the token selected to perform this action.)

A simple Change PIN dialog will open:

Tip!

The default Crescendo PIN is set to eight zeroes (2300 family) or six zeroes (4000 family). You can enter this default value by selecting the default checkbox.
To display the PIN, click and hold the visibility eye icon.

When setting a new PIN, the policy regulating PIN entry is displayed in a bubble above the New PIN field:

This policy can be modified via the Update PIN Policies action, accessible through the kebab menu in the device's interface.

This action enables you to reset the PIN in case it is forgotten or when reassigning a token to a new user.

To unblock the PIN for any connected token, click the Unblock PIN action link in the token's interface in the Devices view, or click the kebab menu button in the top-right corner of that token's interface. (You do not need to have the token selected to perform this action.)

Note: If the PIN is not blocked, a warning is displayed in the Unblock PIN dialog. However, a new PIN can still be set if the current one is unknown.

To unblock the PIN:

Select the available authentication data to unblock the token:
- Management Key
  A hexadecimal string of 32 characters (AES Advanced Encryption Standard. A symmetric key encryption algorithm established by the U.S. National Institute of Standards and Technology (NIST).-128 encryption) or 48 characters (TDES Triple Data Encryption Standard. An encryption algorithm that uses three separate keys for encryption, providing a higher level of security than its predecessor, the Data Encryption Standard (DES). encryption). For devices in their default state, the management key consists of all zeroes.
  Check the default checkbox to enter the default management key.
- Unblock Code (PUK)
  If a PUK PIN Unblock Key. A code used to reset the personal identification number (PIN) in devices after they have been locked due to multiple incorrect PIN entries. has been configured, it can be used here for unblocking. If no PUK has been set up, this method is not available.
- Challenge & Response
  A challenge Random number generated by the server API for authentication of a user in the asynchronous (challenge/response) mode. string is generated, which has to be encrypted by the administrator using the management key. The resulting output, known as the response, is then entered into the Response field. This method ensures that the management key does not need to be disclosed to the user.
Insert the new PIN and confirm by entering it into the Confirm PIN field.
Click Submit to change the PIN.

If you enter the wrong PIN too many times, your token will lock and a PUK PIN Unblock Key. A code used to reset the personal identification number (PIN) in devices after they have been locked due to multiple incorrect PIN entries. is required to unlock it.

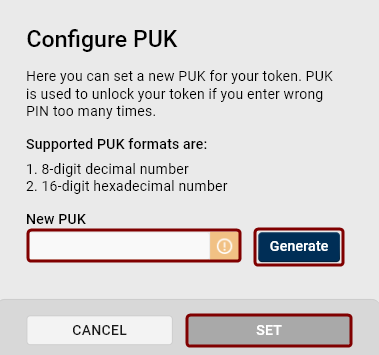

If no PUK has been set for the token, you can configure one. You can also view, change, or delete an existing PUK if needed.

Note:

All PUK-related actions require confirmation with your current PIN unless you have already authenticated to the token using the authentication button in the title bar.
The available actions depend on the token type and configuration. Some of the described actions may not be available for your specific token.

To update the management key A cryptographic key used to control and manage secure operations on a token, such as configuring, updating, or modifying sensitive data. used by your device, navigate to the Devices view and click the kebab menu button in the top-right corner of the token's interface. (You do not need to have the token selected to perform this action.).

Follow these steps to change the management key:

Select the authentication method for authorizing the management key change (by PIN or by the management key).
- If you are already authenticated to the device, you will not be prompted to authorize the key change in the last step.
- If you selected to authenticate with PIN, see point 3.
If you selected to authenticate with the management key, enter the current management key in the provided Old Management Key field. If you are using the default key, select the default checkbox.
Enter the New Management Key you wish to set. For enhanced security, you can select:
- Random AES Advanced Encryption Standard. A symmetric key encryption algorithm established by the U.S. National Institute of Standards and Technology (NIST). key to generate a new, random AES key.
- Random TDES Triple Data Encryption Standard. An encryption algorithm that uses three separate keys for encryption, providing a higher level of security than its predecessor, the Data Encryption Standard (DES). key to generate a new, random TDES key.
Click Change Key to finalize the action.

To access Update PIN Policies, navigate to the Devices view and click the kebab menu button in the top-right corner of the token's interface.

This feature allows you to view and update the current PIN policies set for your token. These policies may vary depending on the device type and profile.

Note: For Crescendo 4000 family devices, the PIN must be in its initial state for certain policies to be updated. A PIN is in its initial state in factory settings before any changes have been made to it. Once the default PIN has been changed, the only way to restore it to its initial state is by recycling the device.

Pin Policy Options

Min/Max PIN Length: Specify the minimum and maximum PIN length.
PIN Format: Choose whether the PIN can include both letters and numbers (alphanumeric format) or numbers only (numeric format).
Force PIN Change: When enabled, the token will not allow the user to perform any action until the PIN is changed. Whenever such a token is inserted, Crescendo Manager will display a warning requiring PIN change.

Note: This PIN policy only affects Crescendo 4000 family devices. For the Crescendo 2300 family, setting the Force PIN Change policy will only result in a prompt being displayed upon and will not impact token usage.
Challenge Type: Select between static or dynamic mode.
- In static mode, the challenge is fixed (3031323334353637 (TDES Triple Data Encryption Standard. An encryption algorithm that uses three separate keys for encryption, providing a higher level of security than its predecessor, the Data Encryption Standard (DES).) or 303132333435363738393A3B3C3D3E3F (AES Advanced Encryption Standard. A symmetric key encryption algorithm established by the U.S. National Institute of Standards and Technology (NIST).).
Note: The Static option has been deprecated since the introduction of the Crescendo 4000 family.
- In dynamic mode, the challenge is generated randomly each time.
Weak PIN A PIN in which the difference between each character or digit and the following one is a constant. For example, a PIN that is a sequence of the same number or character, or an increasing/decreasing sequence of numbers or characters (1234, 4321, 86420, ABCD, acegik, etc.) is a weak PIN. Control: When this policy is enabled, Crescendo Manager and other Crescendo family tools will not allow the user to select a PIN that is overly simple.

Note: This policy is enforced by the software only; therefore, a weak PIN may still be set using, e.g., the APDU Access tool.
FIDO Fast IDentity Online. A security standard used for online authentication, based on a cryptographic key pair unique to each online service. For more information, visit https://fidoalliance.org/how-fido-works/ Shared PIN: If this policy is enabled, any changes to the token PIN will also update the FIDO PIN, and vice versa. If disabled, the FIDO and token PINs remain separate.

Note: This policy is available only for the Crescendo 4000 family and can only be set during the Personalize action.

Tip! To learn more about using Crescendo FIDO, visit the HID Crescendo FIDO webpage.

For enhanced performance, Crescendo Manager internally caches the state of the connected tokens (including token properties, certificates, keys, OTPs, etc.).

Additionally, since Crescendo Manager communicates with devices via Crescendo Minidrivers (one for the Crescendo 2300 family and one for the Crescendo 4000 family), these components also create cache externally to Crescendo Manager.

This action clears both the Minidriver and Crescendo Manager caches for the selected token. This is particularly useful in rare instances when the device's internal state (cache), as recorded by Crescendo Manager, becomes invalid due to external programs communicating with the device or because of an internal error. The Clear Cache functionality is designed to resolve such inconsistencies by reloading the device state.

To clear a token's caches:

Navigate to the Devices view and click the kebab menu button in the top-right corner of the token's interface.
Click Clear Cache.
The caches for the selected token will be cleared.

This action resets the token configuration to its original state, as it was when it left manufacturing.

Warning! The Recycle Device action erases all data from your token, resetting the management key, PIN, and PIN policies to factory default settings.

Note: A recycled token does not allow any actions. To start using it, you must first personalize the token.

Recycling a Token

To recycle a token:

Navigate to the Devices view and click the kebab menu button in the top-right corner of the token's interface.
Select Recycle Device.
Authenticate to confirm this action.

The token will be reset to factory settings. To start using the token, you have to personalize it.

Personalizing a Token

If a token is in factory settings (e.g., after being recycled), you must personalize it before you can start using it.

To personalize a token:

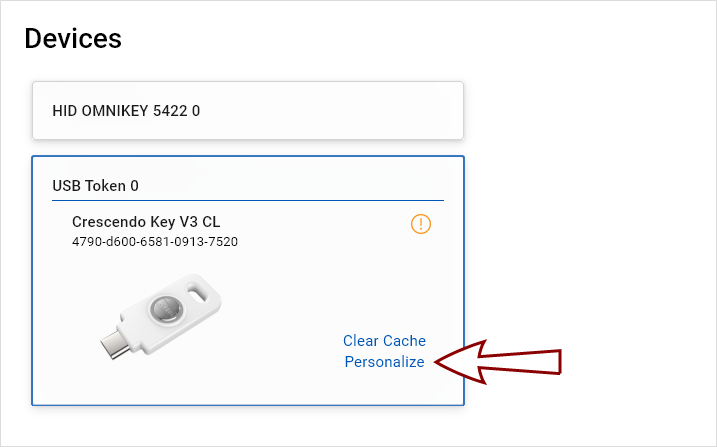

Click the Personalize link on the token tile in the Devices view.

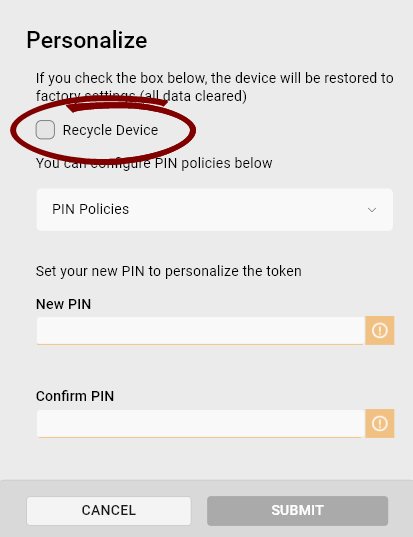

In the Personalize dialog, click the PIN Policies dropdown to configure PIN policies for the token and set the PIN.
Click Submit.
