Configuring Microsoft Entra ID Federation with the DigitalPersona IdP

The following sections describe how to implement identity federation from the DigitalPersona Identity Provider (IdP) using Microsoft's hybrid identity solution to connect your on-premises Active Directory^® (AD) identities with Microsoft^® Entra^® ID so users can access on-premise and cloud resources with a single identity.

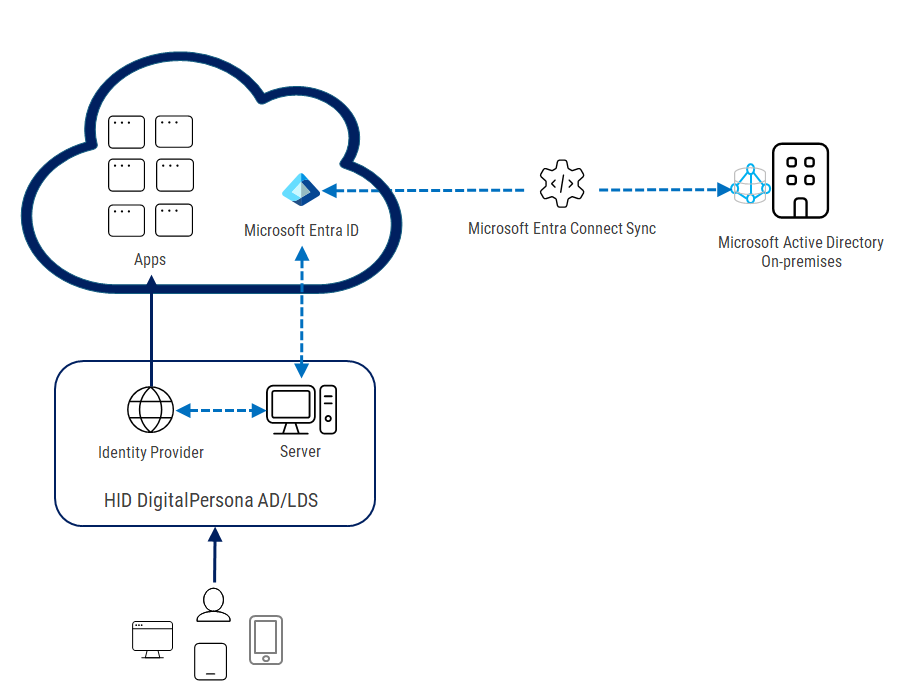

About Microsoft's Hybrid Identity Solution

At its core, hybrid identity synchronizes identities from on-premises AD to Microsoft Entra ID. This ensures users and groups in your local directory are represented in the cloud, enabling a seamless login experience for services such Microsoft 365, Azure, and third-party applications.

Microsoft Entra Connect Sync is Microsoft’s on-premises synchronization tool that connects your local Active Directory to Microsoft Entra ID. It runs as a Microsoft Windows service and continuously synchronizes identity data (such as users, groups, contacts, and in some cases passwords) between your on-premises AD and the cloud directory.

Federation is another identity integration method that allows authentication to be delegated to an external identity provider. For non-Microsoft identity providers, such as DigitalPersona, you can configure Entra ID to trust their assertions to allow users to access Entra-integrated apps.

For further information, go to:

Federation with DigitalPersona

In a federation with DigitalPersona, when a user attempts to sign in to a Microsoft cloud service, Entra ID recognizes the federated domain and redirects them to the DigitalPersona IdP for authentication.

After signing in via the DigitalPersona IdP’s login page, Entra ID grants access to the requested Microsoft service. This allows users to log in to Microsoft 365 applications using their DigitalPersona credentials, including one-time passwords, passkeys, cards, and fingerprints.

Prerequisites

The following requirements must be met before beginning the integration:

You must be an Administrator in the Microsoft Entra tenant
The domain you want to federate must already be added and verified in Microsoft Entra
On-premises users must have the same UPN suffix as the federating domain
Microsoft Entra Connect Sync must be deployed and running
DigitalPersona LDS Server must be deployed and running
DigitalPersona Web Management Components (WMC) must be deployed and running

Only the DigitalPersona Security Token Service (the Identity Provider (IdP)) component is required for federation. The other components are optional.

Set Up Federation

You can enable federation using the Microsoft Graph PowerShell.

It cannot be configured in the Microsoft Entra ID admin center.

Important: Converting a managed domain to federated is disruptive - user sign-in flows change, and users may be unable to sign in during migration if misconfigured. Always test your configuration in a non-production tenant and schedule downtime if needed.

Install the Microsoft Graph PowerShell module using the following command:
Copy
```
Install-Module Microsoft.Graph -Scope CurrentUser
```

Authenticate and grant admin consent using the following command:

Copy

Connect-MgGraph -Scopes "Domain.ReadWrite.All", "Directory.ReadWrite.All", "Directory.AccessAsUser.All"

Set up federation with the following parameters:

Property	Description
DomainId	Name of the verified domain to federate For example, contoso.com
DisplayName	The display name of the federated identity provider For example, DigitalPersona
IssuerUri	Issuer URI of the federation server For example, https://dpsts.contosofed.com/dppassivests
PassiveSignInUri	URI that clients are directed to when signing in to Microsoft Entra services For example, https://dpsts.contosofed.com/dppassivests/wsfed
SignOutUri	URI that clients are redirected to when they sign out of Microsoft Entra services For example, https://dpsts.contosofed.com/dppassivests/wsfed
PreferredAuthenticationProtocol	Must be wsFed
FederatedIdpMfaBehavior	Must be acceptIfMfaDoneByFederatedIdp Microsoft Entra ID accepts MFA performed by the federated identity provider. If the federated identity provider did not perform MFA, Microsoft Entra ID performs the MFA.
SigningCertificate	Current certificate used to sign tokens passed to the Microsoft identity platform The certificate in compatible format can be found in WS-FED metadata file that is available at https://dpsts.contosofed.com/dppassivests/wsfed/metadata

Important: All values are case-sensitive. Enter the domain names in lower case.

For example (where you should replace the values of idpDomain and federatedDomain with your IdP domain name and the Entra ID verified domain that you want to federate):

Copy

$idpDomain = "dpsts.contosofed.com"
$entraDomain = "contoso.com"
New-MgDomainFederationConfiguration `
-DomainId $entraDomain `
-DisplayName "DigitalPersona" `
-IssuerUri https://$idpDomain/dppassivests `
-PassiveSignInUri https://$idpDomain/dppassivests/wsfed `
-SignOutUri https://$idpDomain/dppassivests/wsfed `
-PreferredAuthenticationProtocol wsFed `
-FederatedIdpMfaBehavior acceptIfMfaDoneByFederatedIdp `
-SigningCertificate ((Invoke-RestMethod https://$idpDomain/dppassivests/wsfed/metadata).EntityDescriptor.RoleDescriptor.KeyDescriptor.KeyInfo.X509Data.X509Certificate)

To verify that the domain is federated, log on to the Microsoft Entra admin center, go to Domain Names and make sure there is a check mark in the Federated column for your domain.

For further information, go to Create internalDomainFederation | Microsoft Learn

Update the Signing Certificate

If you need to update the DigitalPersona IdP signing certificate (for example, because the previous certificate has expired), manually upload the new certificate to Microsoft Entra ID. This can also be done with Microsoft Graph PowerShell.

Authenticate and grant admin consent using the following command:

Copy

Connect-MgGraph -Scopes "Domain.ReadWrite.All", "Directory.ReadWrite.All", "Directory.AccessAsUser.All"

Find the internal ID of the federated domain using the following command:
Copy
```
Get-MgDomainFederationConfiguration -DomainId contoso.com
```

Update the certificate with the following parameters:

Property	Description
DomainId	Name of the federated domain
InternalDomainFederationId	Internal ID of the federation configuration
SigningCertificate	Current signing certificate

For example (where you should replace the values of idpDomain and federatedDomain with your IdP domain name and the Entra ID verified domain that you want to federate):

Copy

$idpDomain = "dpsts.contosofed.com"
$entraDomain = "contoso.com"
Update-MgDomainFederationConfiguration `
-DomainId $entraDomain `
-InternalDomainFederationId (Get-MgDomainFederationConfiguration -DomainId $entraDomain).Id `
-SigningCertificate ((Invoke-RestMethod https://$idpDomain/dppassivests/wsfed/metadata).EntityDescriptor.RoleDescriptor.KeyDescriptor.KeyInfo.X509Data.X509Certificate)

Disable Federation

To disable federation for a domain using Microsoft Graph PowerShell you convert it from federated to managed. This is done by removing the federation configuration for that domain.

Important: After federation is removed, sign-ins for the domain will be managed directly by Entra ID. Therefore, make sure cloud authentication (password hash sync or pass-through authentication) is set up beforehand to avoid locking out users.

Authenticate and grant admin consent using the following command:

Copy

Connect-MgGraph -Scopes "Domain.ReadWrite.All", "Directory.ReadWrite.All", "Directory.AccessAsUser.All"

Find the internal ID of the federated domain using the following command:
Copy
```
Get-MgDomainFederationConfiguration -DomainId contoso.com
```

Disable federation with the following parameters:

Property	Description
DomainId	Name of the federated domain
InternalDomainFederationId	Internal ID of the federation configuration

For example(where you should replace the values of idpDomain and federatedDomain with your IdP domain name and the Entra ID verified domain that you want to federate):

Copy

$idpDomain = "dpsts.contosofed.com"
$entraDomain = "contoso.com"
Remove-MgDomainFederationConfiguration `
-DomainId $entraDomain `
-InternalDomainFederationId (Get-MgDomainFederationConfiguration -DomainId $entraDomain).Id
