Onboarding Users

Component Overview

Component Package	com.hid.olb.onboarding
User Interface	Yes, the First Factor and MFA screens will be added based on the options selected in the Component Properties.
Platforms Supported	Web
Functionality	This component is used for onboarding the user.
Available from	Version 12.0.0

Server Settings

Mandatory Server Settings	HID_HOST	<HID Authentication Service Host> (e.g., test123.aaas.hidcloud.com)
	HID_TENANT	<HID Authentication Service Tenant Id> (e.g., tf98f45g90843781907)
	HID_KONY_APP_KEY	<App key of the fabric application> (e.g., h728h89031832jdy9292)
	HID_KONY_APP_SECRET	<App secret of the fabric application> (e.g., 89bv2894673792003jy2)
	HID_SERVICES_URL	https://<temenos-cloud-host>/services (e.g., https://hidglobaltest.temenoscloud.com:443/services)
	HID_REDIRECT_URI	<Redirect url set for the FIDO tenant>
	HID_AS_CLIENT_ID	<Client Id for the tenant>
	HID_ACTIVATION_CODE_AUTHTYPE	<Activation Code Authenticator if other than AT_ACTPWD>
	HID_PASSWORD_AUTHTYPE	<Static Password Authenticator if other than AT_STDPWD>
	HD_OOB_SMS_OTP_AUTHTYPE	<OOB SMS Authenticator if other than AT_OOBSMS>
	HID_OOB_EMAIL_OTP_AUTHTYPE	<OOB Email Authenticator if other than AT_OOBEML>
	HID_DEVICE_TYPE	<Device type to be used for HID Approve if other than DT_TDSV4>
	HID_FIDO_AUTHTYPE	AT_FIDO (by default)
	HID_ACT_EXPIRY_IN_DAYS	<Set the expiration period for Activation Code Authenticator in days> (Default: 1)
	HID_PWD_EXPIRY_IN_DAYS	<Set the expiration period for Password Authenticator in days> (Default: 365)
	HID_OFFSET_TIME	<This server setting adjusts the time zone for Appliance> (Default: +00:00) Note: This property is applicable only when there is a timezone gap between the Fabric Server and HID Server locations. The format for HID_OFFSET_TIME is hh:mm For Example: If HID server is located in UK and the customer is from Kenya then HID_OFFSET_TIME property in the server property will be +02:00.
	HID_PROVISION_HOST	<In case of appliance, this is the value of internal host>
	HID_API_VERSION	<This server property defines the API version for the Authentication Service and Appliance, ensuring that updated APIs are used. (The default value is 10 for Authentication Service and 3 for Appliance.)>
	HID_IS_MFA_REQUIRED	<This setting enables the user to activate/deactivate the Multi-factor authentication (MFA)> (Default: true)
	HID_CACHE_EXPIRY_TIME	120 (by default)
	HID_SMS_MSG_TEMPLATE	<Use # as your OTP for authentication. DO NOT share this OTP with anyone>
	HID_IS_GATEWAY_ENABLED	true: HID generates and sends the OTP. false: HID generates the OTP, but Infinity sends it.
	HID_IS_APPLIANCE	HID is hosted in Appliance or Cloud. (e.g., true)
	HID_SECURE_OTP_AUTHTYPE	<Secure Code Authenticator if other than AT_EMPOTP>
	HID_OOB_SMS_OTP_AUTHTYPE	OOB SMS Authenticator Type (e.g., AT_OOBSMS)
	HID_SMS_DEVICE_TYPE	<The device type for SMS> Value: DT_OOBSMS (by default)
	HID_EMAIL_DEVICE_TYPE	<The device type for email> Value : DT_OOBEML (by default)

View Sample Server Settings

Onboarding Component Properties

S.No.	Property Name	Allowed Values	Purpose
1	FirstFactor	"STATIC_PWD","SECURE_CODE", “FIDO”, "OTP_SMS" , "OTP_EML"	This property determines the first authentication factor to be added to the user. Currently the first authentication factors supported are: Static password Secure code FIDO OTP via OOB SMS OTP via OOB Email
2	MFA	"STATIC_PWD", "SECURE_CODE" ,"OTP_SMS","OTP_EML","APPROVE, “NO_MFA","OTP_HWT"	This property determines the second authentication factor to be added to the user after the first authentication factor is created. Currently, the component supports the following factors: Static Password (Used with First factor is OTP_SMS or OTP_EML) Secure Code (Used with first factor as Static Password) OTP via OOB SMS OTP via OOB Email OTP HWT Push-based authentication using HID Approve NO_MFA

S.No.

Property Name

Allowed Values

Purpose

FirstFactor

"STATIC_PWD","SECURE_CODE", “FIDO”, "OTP_SMS" , "OTP_EML"

This property determines the first authentication factor to be added to the user. Currently the first authentication factors supported are:

Static password
Secure code
FIDO
OTP via OOB SMS
OTP via OOB Email

MFA

"STATIC_PWD", "SECURE_CODE" ,"OTP_SMS","OTP_EML","APPROVE, “NO_MFA","OTP_HWT"

This property determines the second authentication factor to be added to the user after the first authentication factor is created.

Currently, the component supports the following factors:

Static Password (Used with First factor is OTP_SMS or OTP_EML)
Secure Code (Used with first factor as Static Password)
OTP via OOB SMS
OTP via OOB Email
OTP HWT
Push-based authentication using HID Approve
NO_MFA

Onboarding Component Functions

Method	Description
resetUI	Method to reset the UI back to Activation Code Screen.

Onboarding Component Events

Event Name	Description	Parameters
showLoading	The loader is triggered and displayed whenever a service call is initiated.	N/A
dismissLoading	The loader is triggered and dismissed whenever a service call is initiated.	N/A
changeContext	This is triggered when component screens change, indicating that updates to the form are necessary.	String: context Copy context reference: `[ "Login", "ConfirmPassword", "OTP", "DeviceRegistration", "HW", "HWOTP", "RegistrationSuccess", "LoginFIDO", "UpdateDeviceFriendlyName"]`
switchLogin	This is triggered when the component screen switches to the Login Screen and when the registration is successful.	String: status
passwordPolicy	This is triggered to get the Password Policy from the service to the form level.	Password Policy Response
activationCodeFailureCB	This is triggered to get the Failure server-side responses for the Activation Code Validation from the service to the form level.	String (Error Response)
addPasswordandMFAFailureCB	This is triggered to get the Failure server-side responses for the Static Password Setup from the service to the form level.	String (Error Response)
approveDeviceRegistrationCB	This is triggered to get the Device Registration Successful Response from the service to the form level.	String (Success Response)
approveDeviceFailureCB	This is triggered to get the Device Registration Failure Response from the service to the form level.	String (Error Response)
updateDeviceFriendlyNameOnboardingFailureCB	This is triggered to get the Update Device Friendly Name Failure Response – For Session Timeout and other Server Errors.	String (Error Response)
getUserCommunicationDetailsFailureCB	This is triggered when getUserCommunicationDetails returns a failure response.	String (Error Response)
getUserCommunicationDetailsContactSupportCB	This is triggered when `getUserCommunicationDetails` returns a failure response and the Contact Support button is enabled. When the user clicks the button, an event is sent to the front end with the string "Contact Support."	String (“Contact Support”)
addAndSendOOBFailureCB	This is triggered when the OTP is sent, and the OOB authenticator is added. If the service fails, it returns a server failure response.	String (Error Response)
addPasswordToUserFailedCB	This is triggered to get the Failure server-side responses for the Static Password Setup from the service to the form level. (currently checking the session timeout scenario with this)	String (Error Response)
validateOOBFailureCB	This is triggered when the OTP is validated, and the service fails, it returns a session timeout error from the server response.	String (Session Timeout Message)

Onboarding Component Flow

STATIC_PWD

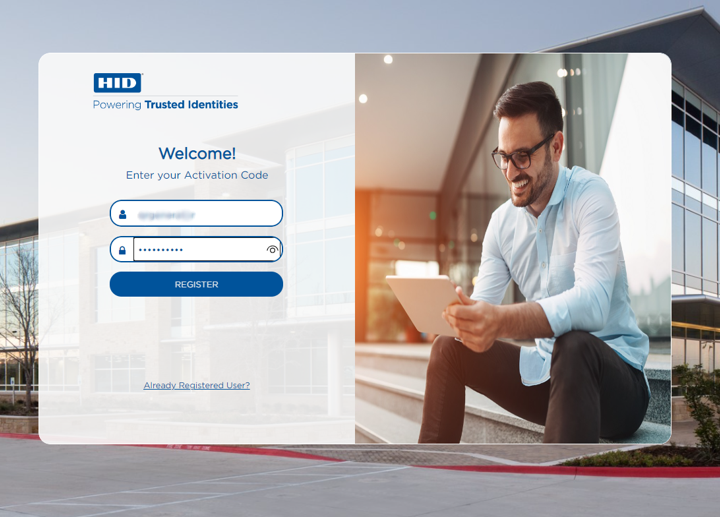

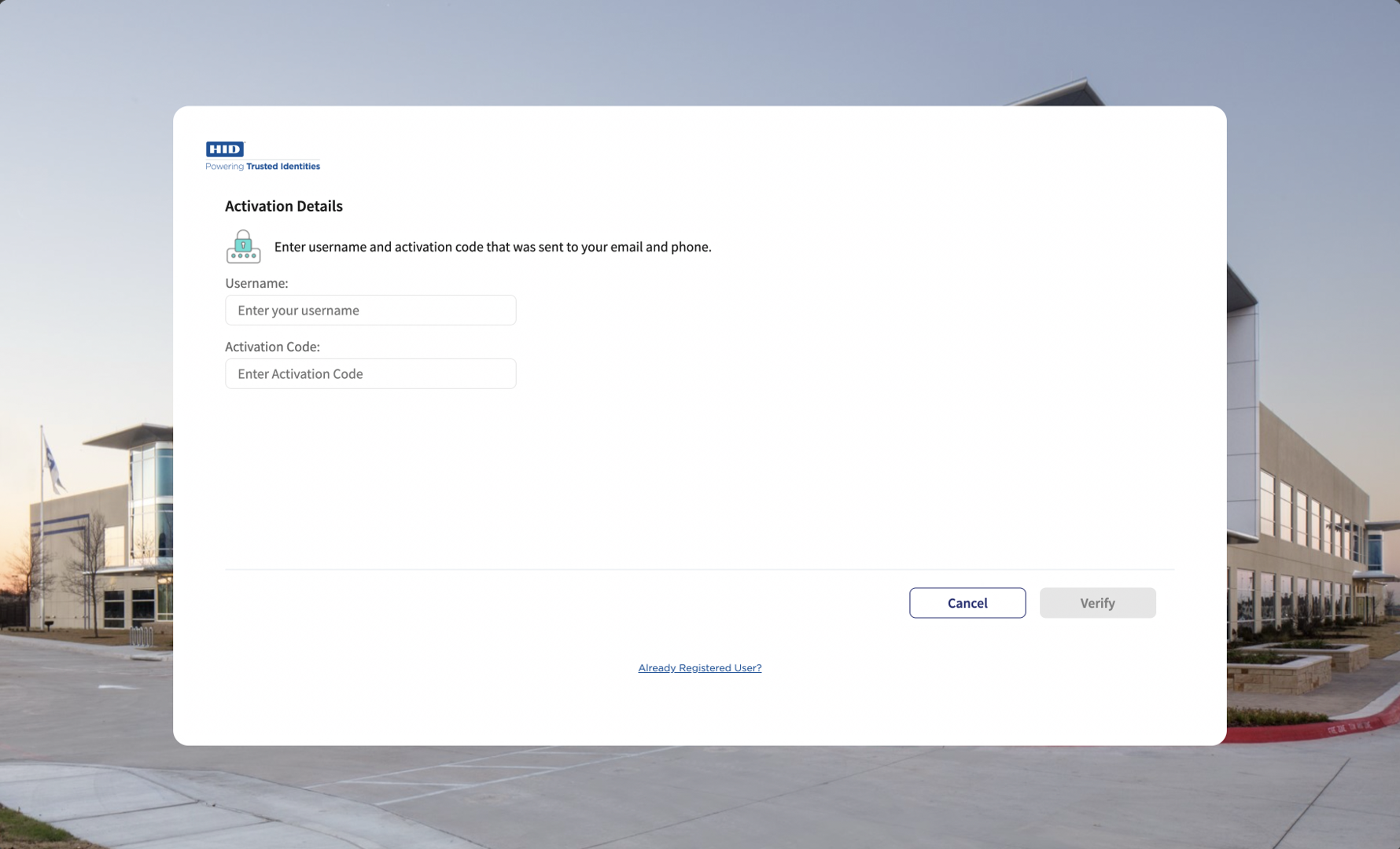

In the first screen, the user provides their Username and Activation Code, then clicks Verify.

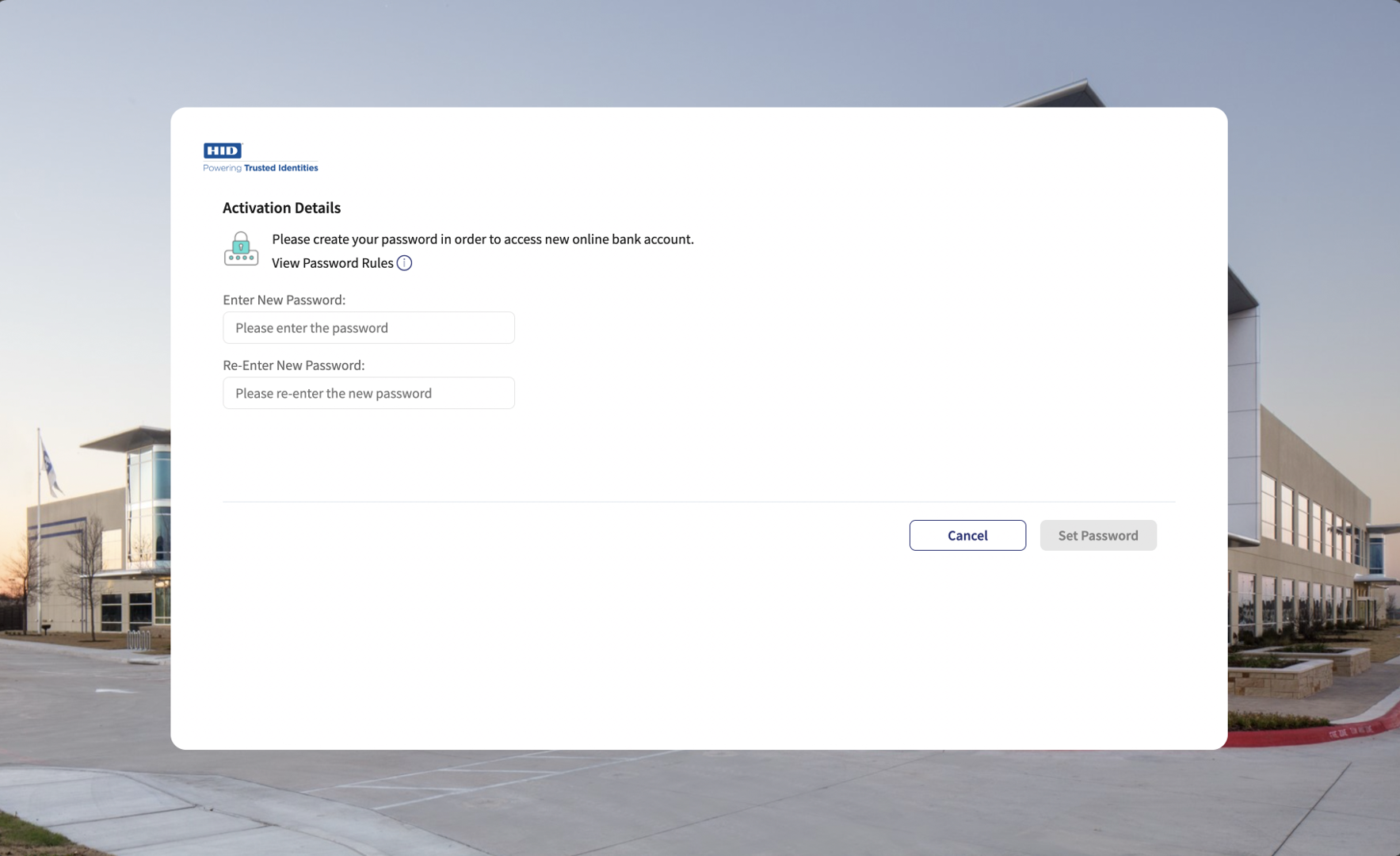

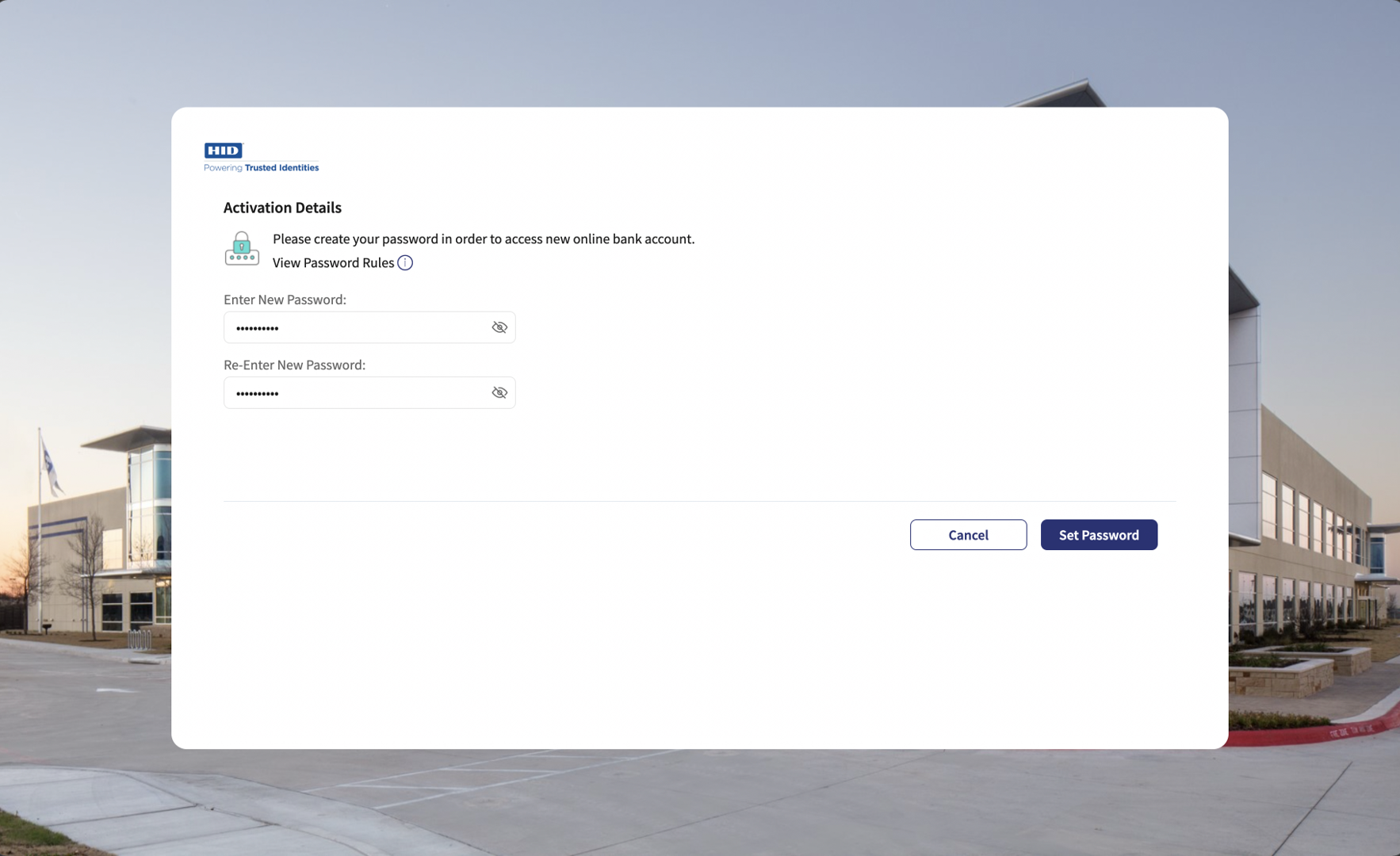

After the Activation Code is successfully validated, the screen for setting a new password is displayed.

Enter and confirm the new password for the user.

Note: The Password must comply with the Password policy.
Once the user has entered and confirmed the new password, click Set Password to create the password.
After the Static password authenticator is successfully created, based on the defined value of the MFA property, the components adds the second authenticator for the user:
Secure Code
1. The screen displays the options to register an HID Approve device using either the QR code or manual registration.

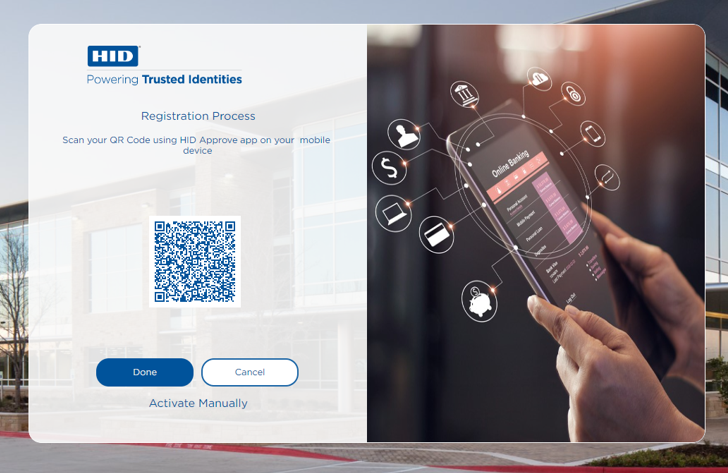

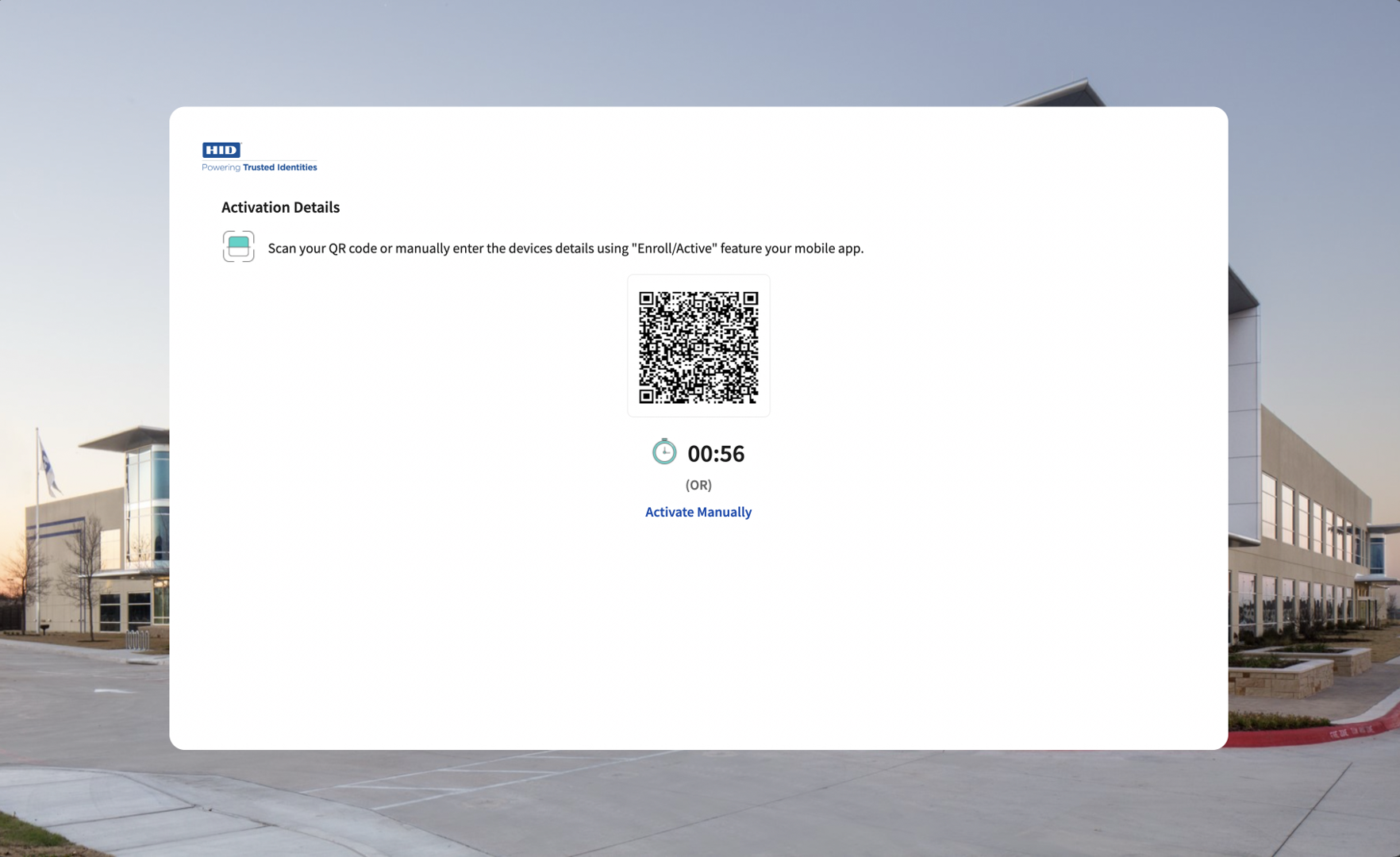

  Registration via QR Code

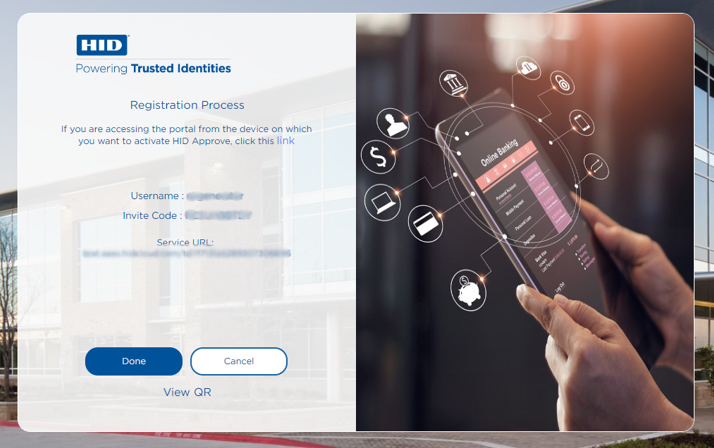

  Manual registration
2. After the device is registered successfully, the user will be shown the screen to update the friendly name of the registered device.
  Click Done to update the friendly name of the registered device.

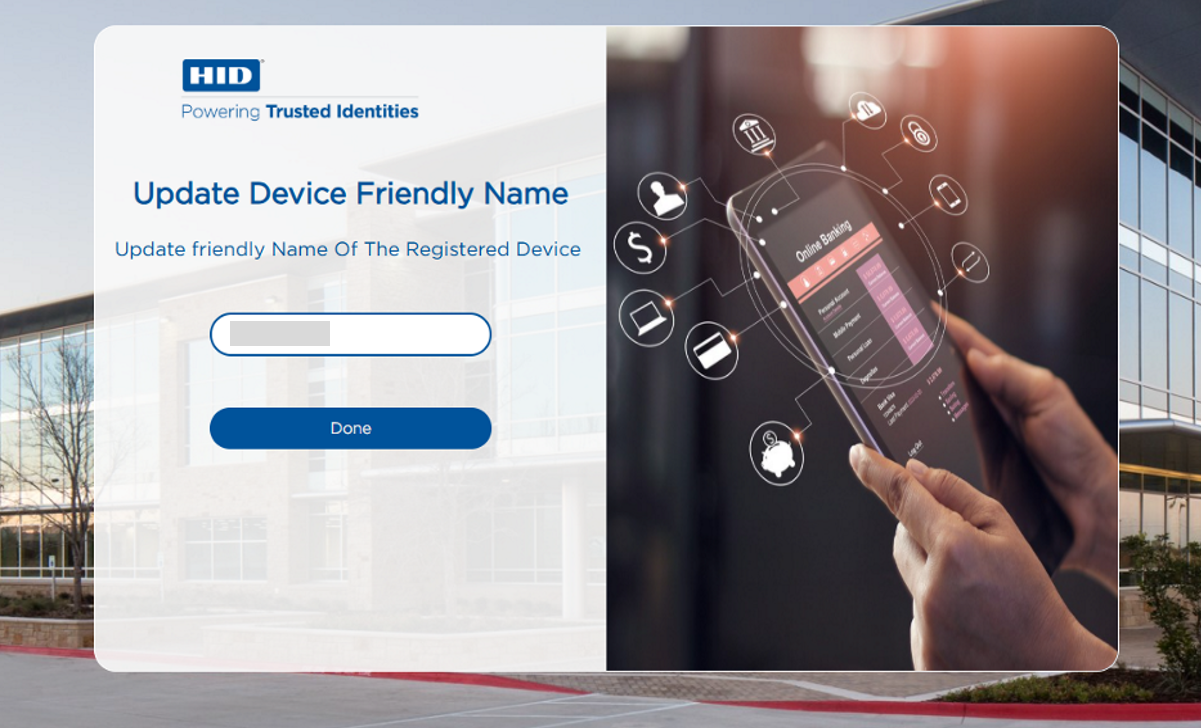

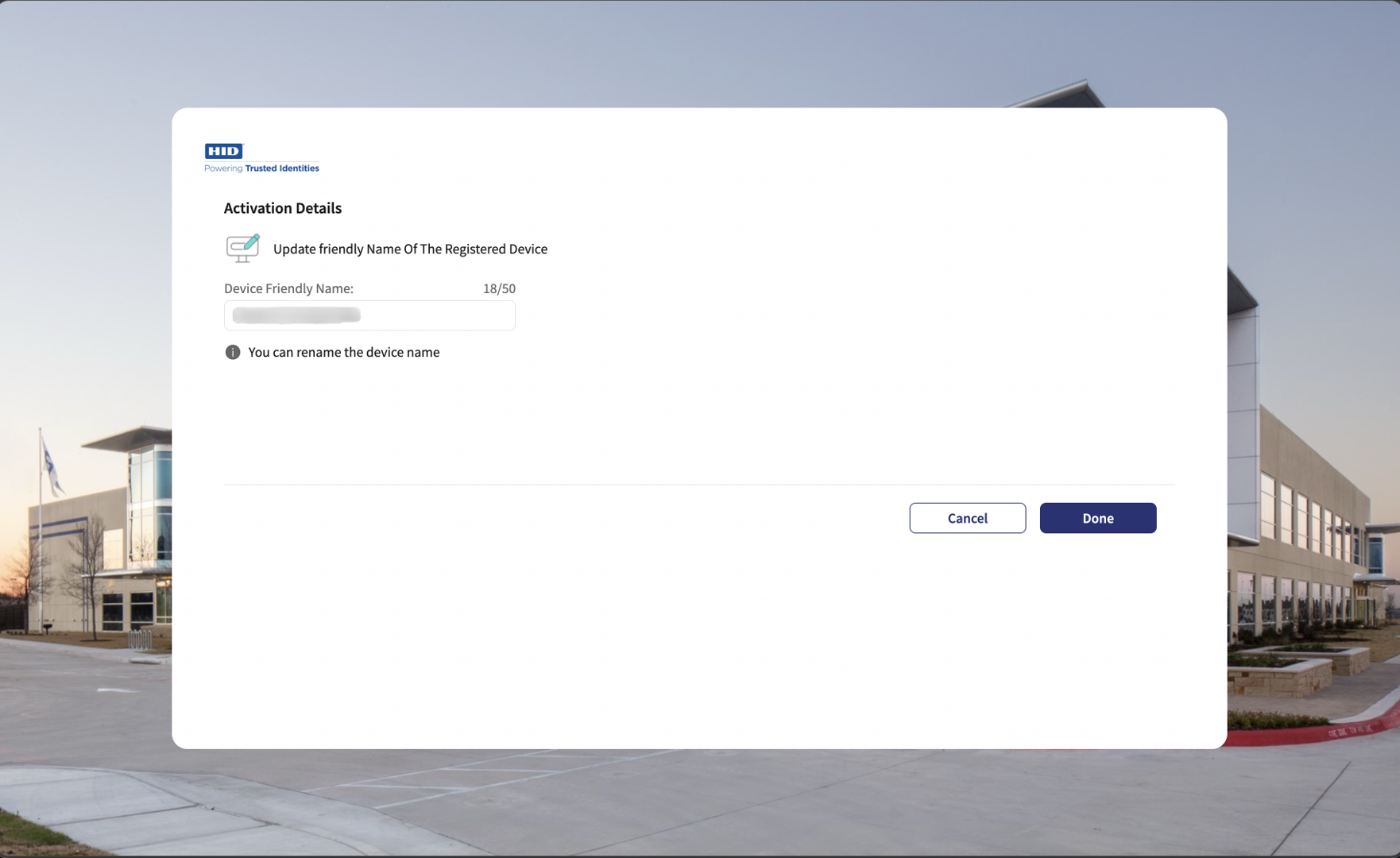

  Update friendly Name of the Registered Device Screen:
3. After Successfully updating the friendly name of the registered device, the user is directed to next screen confirming the successful onboarding.
HID Approve
1. The screen displays the options to register an HID Approve device using either the QR code or manual registration.
  Registration via QR Code
  Manual registration
2. After the device is registered successfully, the user will be shown the screen to update the friendly name of the registered device.
  Click Done to update the friendly name of the registered device.
  Update friendly Name of the Registered Device Screen:
3. After Successfully updating the friendly name of the registered device, the user is directed to next screen confirming the successful onboarding.
OTP via SMS or Email
1. After adding the Out-of-Band (OOB) for SMS/Email authenticator to the user, the user receives an OTP either by SMS or by email based on the selected MFA option.
2. In the third screen, the user enters the received OTP to complete the onboarding process.
3. After validating the OTP successfully, the user is directed to next screen confirming the successful onboarding.

SECURE_CODE

On the first screen, user need to provide Username and activation code, then click Register Button.
After successfully validating the activation code, it will show the next screen to with QR code to register user on mobile app.

or

User can select the "Activate Manually" option to display the details to register device manually.
After the device is registered successfully, user will be directed to next screen to Update Device Friendly name of just registered device.
After the device friendly name of Device Updated successfully , User will be directed to next screen to show that the onboarding process is completed successfully.

OTP_SMS/OTP_EML (First Factor ) + Static Password (Second Factor)

In the first screen, the user provides their Username and Activation Code, then clicks Register.
After adding the Out-of-Band (OOB) for SMS/Email authenticator to the user, the user receives an OTP either by SMS or by email based on the selected MFA option.
In the third screen, the user enters the received OTP to complete the onboarding process.

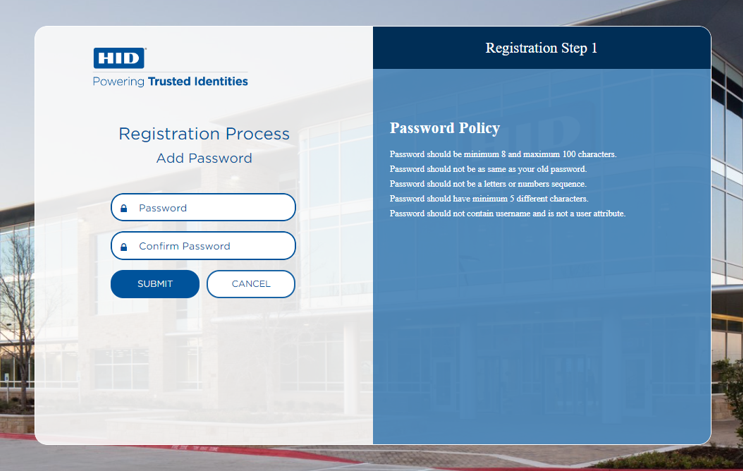

After validating the OTP successfully, the component displays the screen to add a password for the user

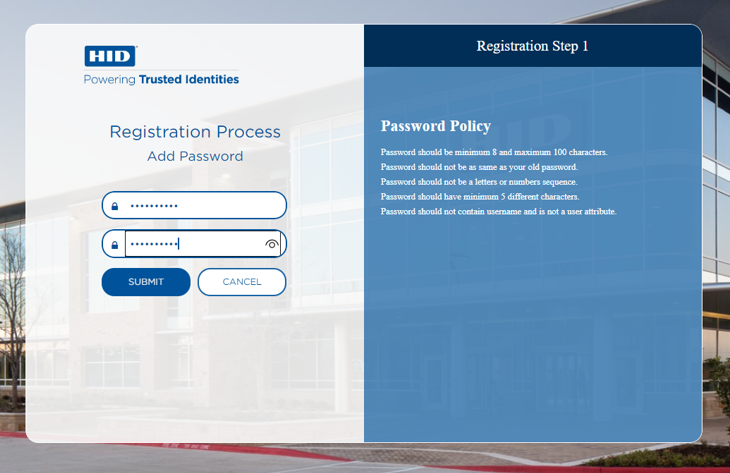

In the screen, user enters and confirms a Password and clicks Submit.
After Adding the Password successfully, the user is directed to next screen confirming the successful onboarding.

FIDO

On the first screen, user will provide username and activation code and clicked on register button.
This will then show a popup to select the options with supported device to register the device.
User get register a new fido authenticator/passkey using the web authentication platform
Once done user will redirect to success screen with message and login button.

Onboarding Component Services

Object Services

ServiceName	DataModel	Mapping	Purpose	Input Parameters	Invoking
HIDObjects	ActivationCodeValidation	validateActivationCode	Validate the user's activation code.	filter (username), username, activationCode, authType	HIDOnboardingValidation > ValidateUser
HIDObjects	AddOOBAuthenticator	addOOBAuthenticator	Add an OOB (SMS/Email) authenticator to the user.	userId, AuthenticatorType (AT_OOBSMS/ AT_OOBEML), AuthenticatorValue (OOB Device Type code : DT_OOBSMS/DT_OOBEML)	HIDScimAPIsOrg > addOOBAuthenticator
HIDObjects	AddPasswordAuthenticator	addPasswordAuthenticator	Add a static password authenticator to the user.	username, userId, password, authType, Auth_Key	HIDScimAPIsOrg > addPasswordAuthenticatorInt
HIDObjects	ApproveDeviceRegistration	getInviteCode	Provision the HID Approve device to the user and get the invite code to add the HID Approve device.	userId, username, usernameWithRandomNo, Auth_Key	HIDPushDeviceRegistrationOrch > getInviteCode
HIDObjects	HIDApproveInitiation	initiateApprove	Initiate the Push notification on the HID Approve device.	username	HIDApproveInitiation > initiate
HIDObjects	ApproveStatusPolling	approveStatusPolling	Poll to the ApproveCallback service to fetch the status of user's response to the HID Approve Push notification.	mfa_key (authRequest Id from the initiateApprove service response)	HIDPollConsensus > getHIDApprovalStatus
HIDObjects	DeviceRegistrationPolling	deviceRegistrationPolling	Poll to the DeviceRegistration Callback service to fetch the status of the HID Approve device registration.	deviceId (device Id from the getInviteCode service response)	HIDPollConsensus > getHIDDeviceRegistrationStatus
HIDObjects	SendOOB	sendOOB	Send the OOB (SMS/Email) OTP to the user.	username, AuthenticatorType (AT_OOBSMS/AT_OOBEML)HID	HIDOTPServices > sendOOB
HIDObjects	ValidateOOB	validateOOB	Validate the OOB (SMS/Email) OTP.	username, AuthenticatorType (AT_OOBSMS/ AT_OOBEML), OTP	HIDOTPService > validateOOB
HIDObjects	PasswordPolicy	getPasswordPolicy	Gets the policy for Static Password Authenticator.	none	HIDAuthenticatorPolicy > getPasswordPolicy
HIDObjects	AddAllOOBAuthNew	addAllOOBAuthenticators	Add an OOB(SMS/Email) authenticator, TX OOB, and Send OTP to the user.	userId, AuthenticatorType (AT_OOBSMS/ AT_OOBEML), AuthenticatorValue (OOB Device Type code : DT_OOBSMS/DT_OOBEML)	HIDScimApisOrch> AddAllOOBAuthenticators
HIDObjects	FIDOOnboarding	getCredentialOptions	It will fetch the configuration options to create FIDO credentials.	username	HIDFIDOOrch> getCredentialOptions
HIDObjects	FIDOOnboarding	registerCredential	It will register the user with FIDO Authenticator.	username, request_uri, id, rawId, clientDataJSON, attestationObject, csrf	HIDFIDO> registerCredential
HIDAuthService	FIDOAuthentication	authenticate	Authenticate the user with FIDO credential assertion and fetch the token.	username, request_uri, csrf, csrfx	HIDFIDOOrch> authenticate
HIDAuthService	FIDOAuthentication	getAuthenticationOptions	It will provide the registered credentials for the client to generate the assertion.	username, request_uri	FIDOOrch> getAuthenticationOptions
HIDObjects	addOOBAuthAndSendSMS	addOOBAuthAndSendSMS	Add an OOB (SMS/Email) authenticator to the user and send sms to the user.	userId, AuthenticatorType (AT_OOBSMS/ AT_OOBEML), AuthenticatorValue (OOB Device Type code : DT_OOBSMS/DT_OOBEML) , Auth_key , OOB_PIN	HIDCustomOTPService >SendOTP
HIDObjects	GetDevice	getDevice	Get Device Details.	deviceId , auth_key , corrrelationId	HIDUpdateFriendlyNamesOnboarding (1.0) > getDeviceOnboarding
HIDObjects	UpdateFriendlyName	updateFriendlyName	Update Device Friendly Name.	deviceId , friendlyName,auth_key,correlationId	HIDUpdateFriendlyNamesOnboarding (1.0) > updateFriendlyNamesOnboarding
Utility	CommunicationInformation	getUserCommunicationInfo	Fetch the Infinity user details such as email and MobileNumber to show on Screen when the OTP factres selected and used to send the OTP.	userName	T24ISExtra (1.0).getUserCommunicationDetailsPreLogi

Fabric Services

Names	Operation Name	Service Type	Description
HIDClientIdentity	-	Identity	Fetches Client Bearer Token
HIDActivationCodeService	Login	Integration	Authenticates the Activation Code
HIDClientAuthIdentityWrapper	getClientBearerToken	Integration	IntegrationWrapper of ClientIdentity
HIDDependencyManager		Integration	Resolves the dependencies for HIDProcessor.jar.
HIDDeviceProvisionJava	GetProvisonMsg	Integration	Fetches the Invite Code
HIDApproveInitiation	Initiate	Integration	Sends an HID Approve Push notification to the user's registered device.
HIDPollConsensus	getHIDApprovalStatus	Integration	Java service to fetch callback response of the HID Approve Push notification.
HIDPollConsensus	getHIDDeviceRegistrationStatus	Integration	Java service to fetch the callback response of the HID Approve device registration status.
HIDOTPServices	SendOOB	Integration	Sends an OOB OTP to the user.
HIDOTPServices	validateOOB	Integration	Validates an OOB OTP.
HIDOTPServices	validateOTP	Integration	Validates a Hardware OTP.
HIDScimAPIs	SearchUser	Integration	Searches for the user.
HIDScimAPIs	createNewDevice	Integration	Creates a new Device ID for the user.
HIDScimAPIs	getActivationCodeAuthenticator	Integration	An exclusive getAuthenticator service for the ValidateUser Orchestration service. This service does not work alone so use the getAuthenticator instead.
HIDAuthenticatorPolicy	getPasswordPolicy	Integration	Provides the Password policy.
HIDScimAPIs	updateDevice	Integration	Binds the new Device ID to the user.
HIDScimAPIsOrg	addOOBAuthenticator	Integration	Adds an OOB Authenticator to the user.
HIDScimAPIsOrg	addPasswordAuthenticatorInt	Integration	Adds a Password Authenticator.
HIDOnbaordingValidation	ValidateUser	Orchestration
HIDPushDeviceRegistrationOrch	getInviteCode	Orchestration	Provisioning Push Device
HIDScimAPIsOrg	addOOBAuthenticatorForOrch	Integration	To add OOB authenticator (AT_OOBSMS/ AT_OOBEML)
HIDTransactionAuthServices	AddTXOOBAuthForOrch	Integration	To add Transaction OOB (TX_OOB)
HIDScimApisOrch	AddAllOOBAuthenticators	Orchestration	To add OOB authenticator, TX OOB authenticator, and to send OTP to the user.
HIDPushedAuthorizationRequest	PAR	Integration	It will generate the request_uri for subsequent calls.
HIDFIDO	getCredentialOptions	Integration	It will fetch the configuration options to create FIDO credentials.
HIDFIDO	registerCredential	Integration	It will register the user with FIDO Authenticator.
HIDFIDOOrch	authenticate	Orchestration	It will be consumed for authentication journey of the user.
HIDFIDOOrch	getAuthenticationOptions	Orchestration	It will provide the registered credentials for the client to generate the assertion.
HIDFIDOOrch	getCredentialOptions	Orchestration	It will fetch the configuration options to create FIDO credentials.
HIDCustomOTPService	sendOTP	Integration	Used to send OTP.
HIDOTPServiceKMSOrch	addOOBAndSendOTPAuthService, addOOBAndSendOTPAppliance , generateAndSendOTPAppliance, generateAndSendOTPAuthService, sendLoginOTPAppliance, sendLoginOTPAuthService	Orchestration	Used for adding OOB authenticator , generate OTP and sending OTP.
HIDSoapServices	indirectPrimaryAuthenticateDevice	Integration (Soap Service)	Generate and Send OTP for HID Appliance
HIDOTPUtilServices	fetchPhoneNumber	Integration	Used to fetch the Phone number of the user for the HID Appliance to send the OTP.
T24ISExtra	getUserCommunicationInfo	Integration	Note: Temenos Integration Service Fetch the Infinity user details such as email and MobileNumber to show on Screen when the OTP factres selected and used to send the OTP

Java Services

Service Name	Purpose	Dependencies	Called by (Service Name-Operation)
DeviceProvision	Java service to send the Device Provisioning request for HID Approve device registration and process the response to send the provisioning message.	You need to configure following Server Properties: HOST TENANT SERVICES_URL	HIDDeviceProvisionJava-getProvisonMsg
HIDPollForConsensus	Java service which keeps polling for 45 seconds to get the status of the HID Approve Push notification sent to the user.		HIDPollConsensus-getHIDApprovalStatus
PollForDeviceRegistrationStatus	Java service which keeps polling for 45 seconds to get the status of the HID Approve device registration.		HIDPollConsensus-getHIDDeviceRegistrationStatus
OTPDeliveryService	Java Service to decide which delivery gateway to use to send SMS	HID_SMS_MSG_TEMPLATE , IS_HID_GATEWAY_ENABLED , HID_OOB_SMS_OTP_AUTHTPYE, HID_OOB_EMAIL_OTP_AUTHTPYE, HID_SMS_DEVICE_TYPE , HID_EMAIL_DEVICE_TYPE	CustomOTPService

Listener Endpoints (HTTP Servlets)

Name	URL	Purpose	Dependencies
ApproveCallBackEndpoint	https://hidglobal-dev.temenos-cloud.net/services/ApproveCallBackEndpoint	Listen to the callback response sent by the HID Authentication Service for the user's response to the HID Approve Push notification.	Value of Server Property : HOST Set the value of ATR_CIBACB attribute for the client to the url (Column 2) in HID Authentication Service. Set the value of "hid_ciba_callback_format_plain" to false for the client in the HID Authentication Service using the Register API.
DeviceRegistrationCallBackEndpoint	https://hidglobal-dev.temenos-cloud.net/services/DeviceRegistrationCallBackEndpoint	Listen to the callback response sent by the HID Authentication Service for the user's response to the HID Approve Device registration request (either by scanning QR code or manually registration)	None (Listener endpoint URL is already being sent in Device Provisioning request as cb_url).

Onboarding Pre/Post Processors

Onboarding Pre Processors:

Names	Description	Used by (ServiceName-Operation)
ActivationCodeAuthentcatorPreProcessor	Validates user exists and has activation code authenticator. Checks userExists and AuthExists attributes; sets authType from HID_ACTIVATION_CODE_AUTHTYPE server setting.	HIDOnboarding - ActivationCodeAuthenticator
ActivationCodeLoginPreProcessor	Prepares activation code login. Checks if prior sequence step failed; sets authType from HID_ACTIVATION_CODE_AUTHTYPE and stores username in request attributes.	HIDOnboarding - ActivationCodeLogin
ActivationCodePreProcessor	Computes activation code validity dates (startDate/expDate) using configurable ACT_EXPIRY_TIME. Applies timezone offset and sets authType from settings.	HIDOnboarding - CreateActivationCode
AddAllOOBAuthenticatorsPrePreprocessor	Validates Auth_Key against cached userId hash. If valid, passes username, userId, and factor into request attributes for adding all OOB authenticators in batch.	HIDOnboarding - AddAllOOBService
AddHWAuthenticatorPreProcessor	Checks if prior sequence failed; sets AuthenticatorType from HWT_AUTHTYPE server setting and adds correlation ID header.	HIDOnboarding - AddHWAuthenticator
AddOOBAuthenticatorPreProcessor	Adds OOB authenticator (SMS or Email). Checks password was added successfully, resolves authenticator type and device type from settings based on AT_OOBSMS/AT_OOBEML. Nullifies OOB_PIN if password not required.	HIDOnboarding - AddOOBAuthenticator
AddPasswordPreProcessor	Validates Auth_Key against cached userId hash. Computes password start/expiry dates using PWD_EXPIRY_TIME config. Sets authType from HID_PASSWORD_AUTHTYPE.	HIDOnboarding - AddPassword
AddSMSOOBAuthenticatorPreProcessor	Adds SMS/Email OOB authenticator. Resolves authenticator type and device type from settings. Similar to AddOOBAuthenticatorPreProcessor but without password-exists check.	HIDOnboarding - AddSMSOOBAuthenticator
AddTXOOBPreProcessor	Simple sequence gate for Transaction OOB addition. Checks sequenceFailed flag; if false, allows operation to proceed.	HIDOnboarding - AddTXOOB
AssociateHWDevicePreprocessor	Associates hardware device with user. Validates totalResults to confirm devices found, sets DeviceId (trimming trailing char) and loop_count.	HIDOnboarding - AssociateHWDevice
CreateDevicePreProcessor	Computes start date and expiry date (current + configured YEARS), sets deviceType from HID_DEVICE_TYPE server setting.	HIDOnboarding - CreateDevice
DeviceProvisionPreProcessor	Retrieves DeviceId from request attributes (set by prior step); fails if DeviceId is missing. Sets deviceType from HID_DEVICE_TYPE.	HIDOnboarding - DeviceProvision
GetAuthenticatedTokenPreProcessor	Validates server-csrf-token from csrfx request attribute and adds it to request headers. Returns 400 if token is missing.	HIDOnboarding - GetAuthenticatedToken
GetDevicePreProcessor	Validates auth_key against cached deviceId. If key matches, allows get-device operation to proceed.	HIDOnboarding - GetDevice
GetInviteCodePreProcessor	Validates Auth_Key against cached userId hash. Sets isOnboardingFlow=true and adds X-Correlation-ID header.	HIDOnboarding - GetInviteCode
OOBAuthenticatorPreprocessor	Checks sequenceFailed, resolves authenticator type (SMS/Email) from settings, sets channelId from HID_IDP_CHANNEL, and nullifies password if not required.	HIDOnboarding - OOBAuthenticator
OrgAdminPreprocessor	Retrieves org admin credentials (HID_ORG_ADMIN_USERNAME, HID_ORG_ADMIN_PASSWORD) from server settings and injects them as parameters. Fails if either is missing.	HIDOnboarding - OrgAdminLogin
PARPreProcessor	Retrieves client_id and redirect_uri from server settings (HID_CLIENT_ID, HID_REDIRECT_URI). Fails if either is empty.	HIDOnboarding - PAR
PasswordValidationPreprocessor	Validates access_token exists in request attributes and sets it as Authorization header. Returns 401 if missing.	HIDOnboarding - PasswordValidation
RegisterCredentialsPreProcessor	Validates server-csrf-token from input (csrf param) and sets it in headers. Adds X-Correlation-ID header.	HIDOnboarding - RegisterCredentials
SendOOBLoginPreprocessor	Validates transaction ID (msgId) from cache, resolves OOB authenticator type (SMS/Email), sets channelId, nullifies password if not required.	HIDOnboarding - SendOOBLogin
UpdateFriendlyNamePreProcessor	Validates auth_key against cached deviceId. If valid, allows device friendly name update to proceed.	HIDOnboarding - UpdateFriendlyName

Onboarding Post Processors:

Names	Description	Used by (ServiceName-Operation)
ActivationCodeAuthenticatorPostProcessor	Validates activation code authentication result. Checks if code is expired (active=false), failed threshold reached (≥3 consecutive failures), or already consumed (consecutiveSuccess > 0). Marks sequence as failed with appropriate error messages.	HIDOnboarding - ActivationCodeAuthenticator
ActivationCodeLoginPostProcessor	If id_token is present, marks validation as success and clears the token. Otherwise marks validation as failure with "incorrect activation code" error.	HIDOnboarding - ActivationCodeLogin
AddAllOOBAuthenticatorsPostProcessor	Final orchestration postprocessor for adding all OOB authenticators. Validates cacheAuthKey, removes cache on completion (factor="" or "2"), and returns aggregated error info if any step in the sequence failed.	HIDOnboarding - AddAllOOBAuthenticators
AddAuthenticatorsPostProcessor	Checks whether a static password authenticator already exists. If isPasswordAdded is false, returns error indicating password already exists.	HIDOnboarding - AddAuthenticators
AddPasswordPostProcessor	Handles result of adding a password authenticator. Detects duplicate password (SCIM uniqueness error or errorCode 1103) and sets isPasswordAdded=false. Removes cache on successful factor-2 completion.	HIDOnboarding - AddPassword
AddSMSOOBAuthenticatorPostProcesso	Processes result of adding SMS OOB authenticator. If successful, searches for SMS-type devices and updates their friendly name, start date, and expiry date via HIDUpdateFriendlyNames service.	HIDOnboarding - AddSMSOOBAuthenticator
AddTXOOBAuthenticatorPostProcessor	Processes result of adding Transaction OOB authenticator. If successful, searches for transaction-type devices and updates their friendly name, start date, and expiry date via HIDUpdateFriendlyNames service.	HIDOnboarding - AddTXOOBAuthenticator
AssociateHWDevicePostProcessor	Checks if the sequence has failed in a prior step. If so, returns error with "ServiceFailed" param. Otherwise marks sequence as not failed.	HIDOnboarding - AssociateHWDevice
AuthenticatePostProcessor	Extracts server-csrf-token header from the integration response and stores it as csrfx attribute. Returns error if headers are missing.	HIDOnboarding - Authenticate
CreateDevicePostprocessor	Extracts DeviceId from the create device response and sets it as a request attribute. If DeviceId is empty, stores the error detail message for downstream processors.	HIDOnboarding - CreateDevice
CustomTokenOrch	Extracts org admin access token and builds custom session/security attributes with Bearer token for orchestration identity login.	HIDOnboarding - CustomTokenOrch
GetAuthenticatedTokenPostProcessor	Parses the raw JSON response to extract code and context fields (OAuth authorization code flow). Returns error if JSON parsing fails or both values are empty.	HIDOnboarding - GetAuthenticatedToken
GetCredentialOptionsPostProcessor	Extracts server-csrf-token header from integration response and adds it to result. Returns 400 error on failure.	HIDOnboarding - GetCredentialOptions
GetDevicePostProcessor	Checks device status after retrieval. If opstatus ≠ 0 or status ≠ "ACTIVE", removes the auth_key from cache (invalidating the session).	HIDOnboarding - GetDevice
GetInviteCodePostProcessor	Retrieves device provision details (provisioning message). Validates cacheAuthKey and removes cache for onboarding flow. Returns errors if DeviceId or provisionMsg is empty.	HIDOnboarding - GetInviteCode
OOBAuthenticatorPostProcessor	Final postprocessor for OOB send operation. Removes transactionId from cache, then checks if OOB was sent successfully. Returns 401 error if OTP sending failed.	HIDOnboarding - OOBAuthenticator (SendOOB)
PARPostProcessor	Handles PAR response. Extracts request_uri and sets it as a request attribute. Marks sequence as failed if request_uri is empty.	HIDOnboarding - PAR
RegisterCredentialsPostProcessor	Handles FIDO/WebAuthn credential registration result. If error is "empty response received" (204 response), returns success (201). Otherwise passes through the result.	HIDOnboarding - RegisterCredentials
ScimErrorHandlerCommon	Empty/placeholder common SCIM error handler utility class. Currently returns null with no implementation.	N/A (Utility)
SearchHWDevicePostProcessor	Extracts device IDs from resources dataset, concatenates them pipe-delimited, and stores count + IDs as request attributes for downstream use.	HIDOnboarding - SearchHWDevice
SearchUserPostProcessor	Validates user search results: checks if user exists (totalResults > 0, active=true). Also checks if the activation code authenticator already exists for the user.	HIDOnboarding - SearchUser
SendOOBPostProcessor	Intermediate OOB send postprocessor. If not already failed, checks OOB_SENT status. If empty, marks sequence as failed with "send OTP failure" error.	HIDOnboarding - SendOOB
UpdateDevicePostProcessor	Handles device update response. If detail_updateDevice is present (error), clears DeviceId and sets error message for downstream GetInviteCode processor.	HIDOnboarding - UpdateDevice
UpdateFriendlyNamePostProcessor	Removes auth_key from cache after updating device friendly name, cleaning up the authentication session.	HIDOnboarding - UpdateFriendlyName
ValidateUserPostProcessor	Final orchestration postprocessor for user validation. If failed, returns 400 error. On success, generates UUID auth key, caches it (configurable expiry), and returns it to client.	HIDOnboarding - ValidateUser

Troubleshooting Fabric Services

Refer to troubleshooting the Onboarding Fabric Services.
