Transaction Signing

Component Overview

Component Package

com.hid.olb.TransactionSigningFlow

User Interface

Yes, MFA Screens will be added newly depends on the factor.
Platforms Supported Omnichannel (Web & Mobile)
Functionality This component is Non-UI version of the Transactions Details Screen.
Available from Version 12.0.0

Server and Client App Settings

Mandatory Server Settings HID_KONY_APP_KEY

<App key of the fabric application>

(e.g., h728h89031832jdy9292)
HID_KONY_APP_SECRET

<App secret of the fabric application>

(e.g., 89bv2894673792003jy2)
HID_HOST

<HID Authentication Service Host>

(e.g., test123.aaas.hidcloud.com)
HID_TENANT

<HID Authentication Service Tenant Id>

(e.g., tf98f45g90843781907)
HID_PUSH_TRANSACTION_AUTH_TYPE

Push Authenticator type for Transaction.

(e.g., AT_TDS)

HID_PUSH_TXN_CHANNEL

Channel ID Transaction.

(e.g., CH_TDS)
HID_TRANSACTION_AUTH_TYPE Transaction Authenticator (e.g., AT_TXOOB)
HID_IS_APPLIANCE HID is hosted in Appliance or Cloud. (e.g., true)
HID_OOB_SMS_OTP_AUTHTYPE OOB SMS Authenticator Type (e.g., AT_OOBSMS)
HID_SMS_DEVICE_TYPE OOB SMS Device Type (e.g., DT_OOBSMS)
HID_IS_GATEWAY_ENABLED Determines HID gateway to send the OTP or customer’s gateway. (e.g., false – If customer uses own gateway.)
HID_SECURE_OTP_AUTHTYPE <Secure Code Authenticator if other than AT_EMPOTP>
Mandatory Client App Settings HID_DEVICE_TYPE Device Type. (e.g., DT_TDSV4)

View Sample Server Settings

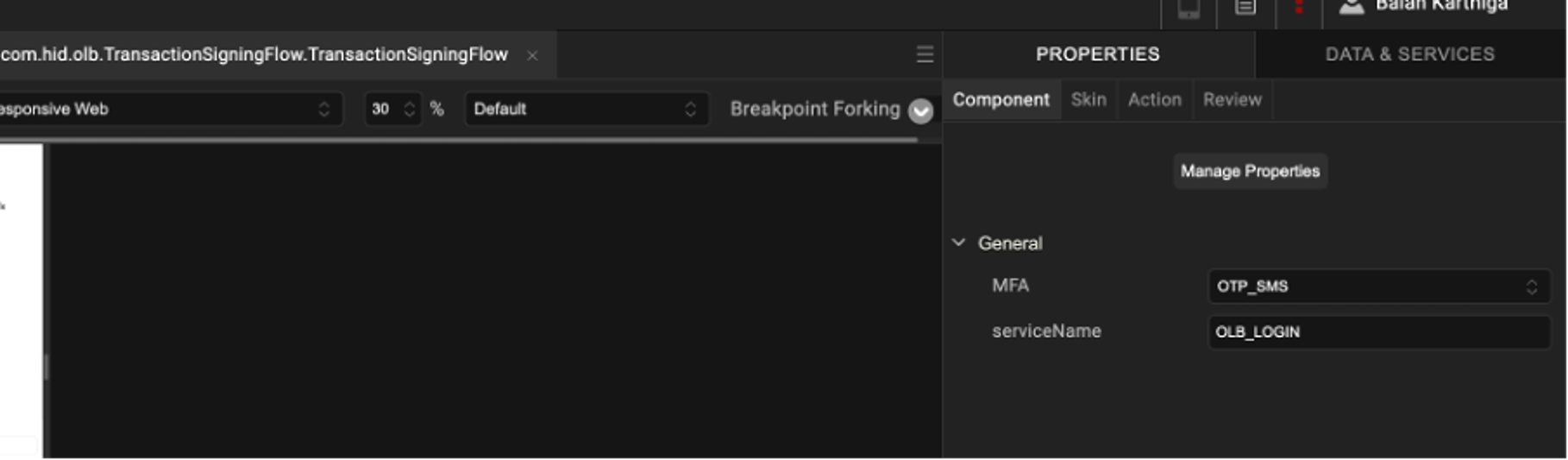

Transaction SigningComponent Properties

S.No.  Property Name  Purpose

1

 MFA

This property is used to select MFA for Transaction Signing

(e.g., APPROVE, SECURE_CODE, OTP_SMS).
2 serviceName This property is used to define a transaction message by Temenos.

Transaction Signing Component Public Functions

Function Name Description Parameters Return Type
showTSScreen This function is used to display the Transaction Signing MFA UI.

paymentData

Copy
Example:
{
"username": "DemoUser",
                "tds": "Approve Msg",
                "sourceMode":
sourceMode,
                "partnerMode":
partnerMode,
                "sessionId": this.sessionId,
                "request": request,
                "isRMSEnabled":
this.isRMSEnabled,
                "account": "12332323",
                "amount": "212"
                "remarks": "test",
                "currency": "USD"
}
 N/A
showDeviceList This function is used to show the list of devices to select during Approve flow. N/A N/A
showPaymentAlert This function is used to show the alert popup on screen when threshold is reached, internal service issues occur, or RMS payment decline scenarios happen. N/A N/A
Note: Not passing any of the mandatory parameters or passing the wrong datatypes will lead to an exception.

Transaction Signing Component Events

Important: Events must be subscribed from visualizer form side.
Event name Description Parameters
backToPayments Navigates back to the Payments screen. N/A
approveStatusApproved Raised when approval is successful. N/A
showLoading Triggered to show loader during service calls. N/A
onDismissLoading Triggered to dismiss an active loader. N/A
showDeviceConfirmation Determines whether to show device list or direct approval. deviceCount
contactSupport Raised when push threshold is reached. N/A
showPaymentApprovalAlertPopup Raised when secure code threshold is reached. N/A
showServerError Raised when push threshold is reached. “errorReason”
offlineTSSuccess Raised when TS with OCRA OTP Signed – Success Callback. N/A
validateSMSOTPSuccess Raised when TS with SMS OTP Signed – Success Callback. N/A
Note: Other internal events are handled within the component UI itself and only the required events are emitted to the form.

Transaction Signing - Approve Workflow

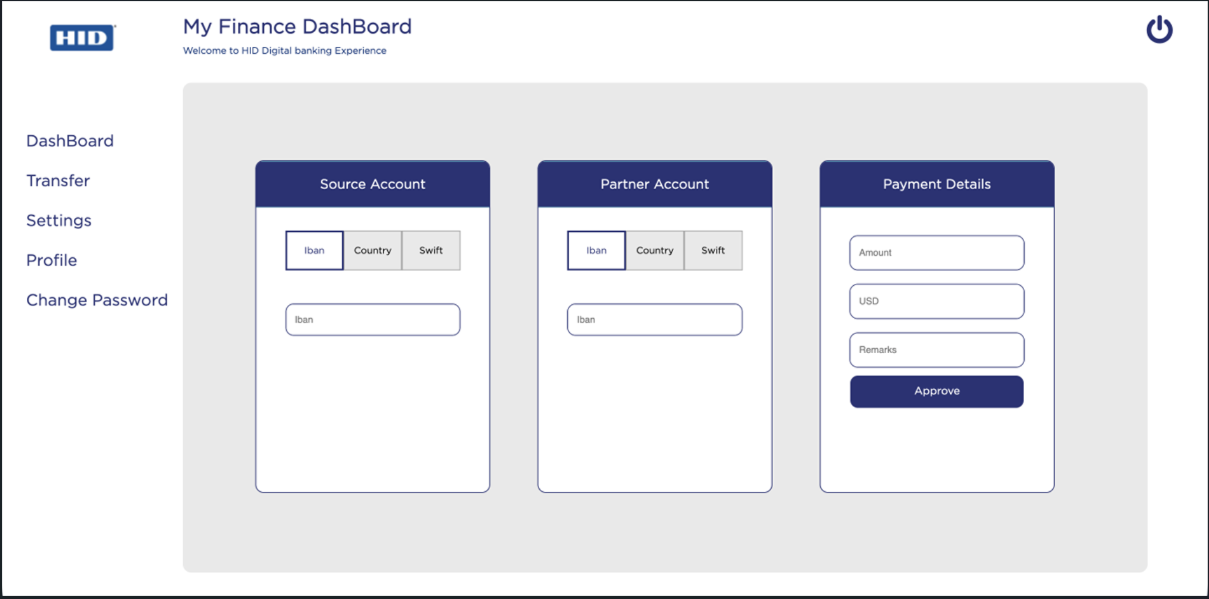

In the OOTB Infinity Web application, the user enters the payment details and clicks Approve to initiate the transaction.

Single Device Approval

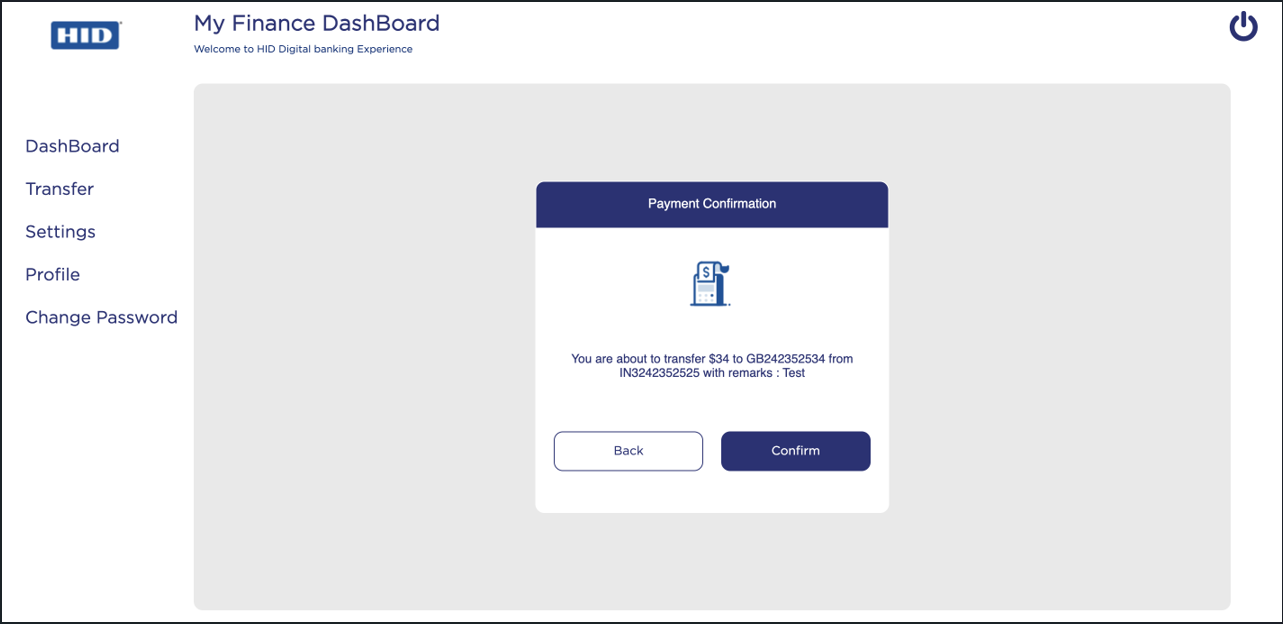

  1. When the user clicks Confirm on the OOTB Payment confirmation screen, the Payment Approval screen with a timer is displayed.

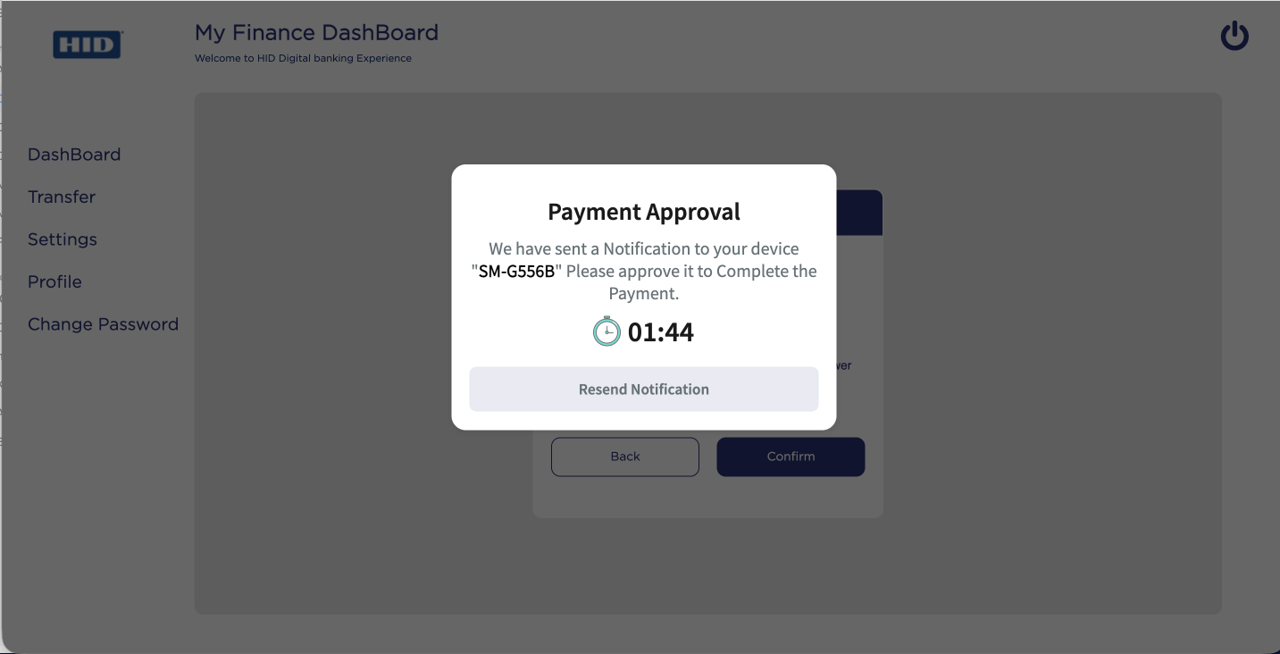

  2. A push notification is sent to the registered mobile device.

    If you did not receive the notification, click Resend Notification to receive the notification again.

  3. The user can Approve or Decline the push notification on the mobile device.

    Once approved, you will receive a Payment Success notification.

Multi-Device Approval

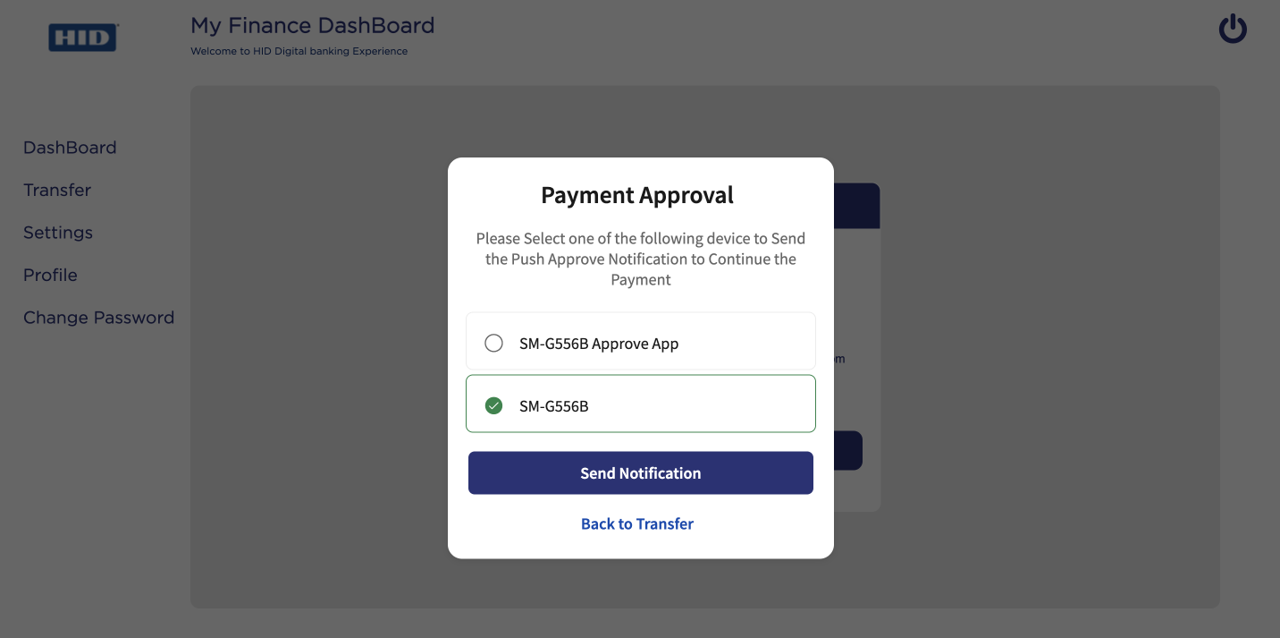

  1. When the user clicks Confirm, the Payment Approval screen with a list of registered devices is displayed.

  2. From the list of displayed devices, select the device to which you want to send the push notification.

  3. Click Send Notification. A push notification is sent to the selected device.

    If you want to return to the OOTB Payments (initial) screen, click Back to Transfer option.

  4. The user can Approve or Decline the push notification on the device.

    Once approved, you will receive a Payment Success notification.

Transaction Signing - Secure Code Workflow

  1. In the OOTB Infinity Web application, the user enters the payment details and clicks Secure Code to initiate the transaction.

  2. When the user clicks the Confirm button on the Payment Confirmation screen, a QR code is displayed. The QR code is generated using the transaction details such as account, amount, and remarks, along with manual entry details.

  3. The user opens the HID Approve mobile application or MobileBanking App and selects the Scan to Pay option or manually enters the account, amount, and remarks to generate an OCRA OTP.

  4. The user enters the generated OCRA OTP in the Payment Secure Code field and clicks Confirm to start the transaction process.

    Once the transaction is successful, you will receive a Payment Success notification.

    Note:

    • If the entered Secure Code is incorrect, an error message is displayed for the incorrect secure code.

    • If the number of incorrect attempts exceeds the configured threshold, the system displays a Payment Approval alert stating that the threshold has been reached.

    • If the Secure code is validated successfully, it will trigger an event to Form.

Transaction Signing - OTP SMS Workflow

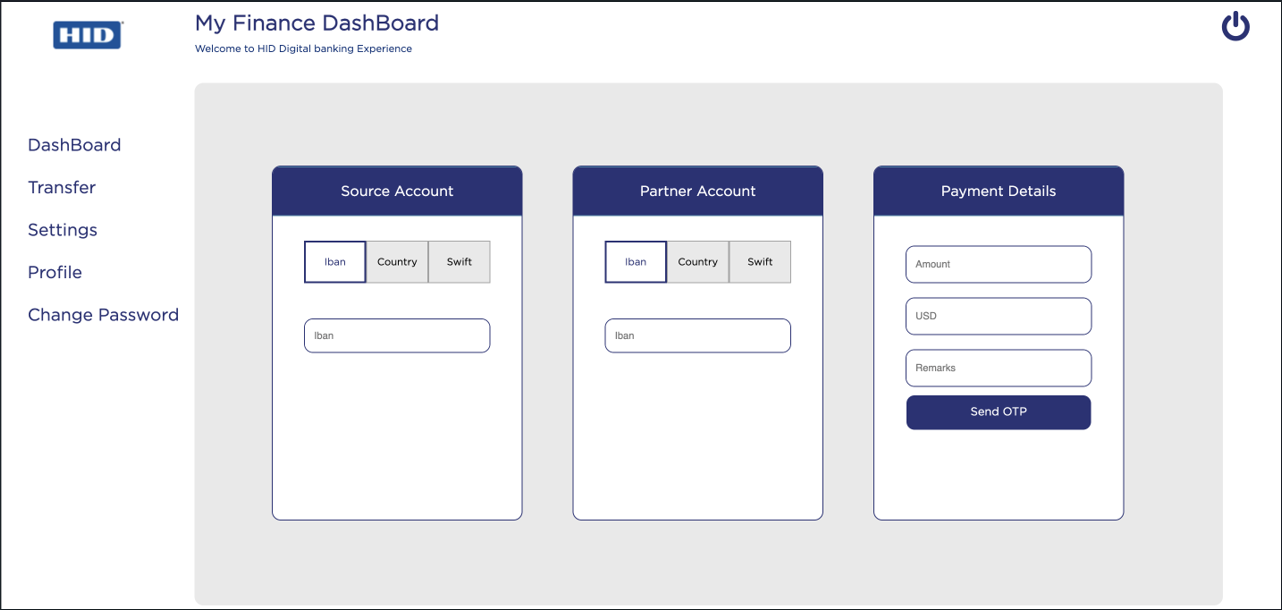

  1. In the OOTB Infinity Web application, the user enters the payment details and clicks Send OTP to initiate the transaction.

  2. When the user clicks the Confirm button on the Payment Confirmation screen, the system invokes the Fetch Infinity User Details API to get the Infinity user Communication details(phone and email) and trigger an OTP SMS to the registered mobile number.

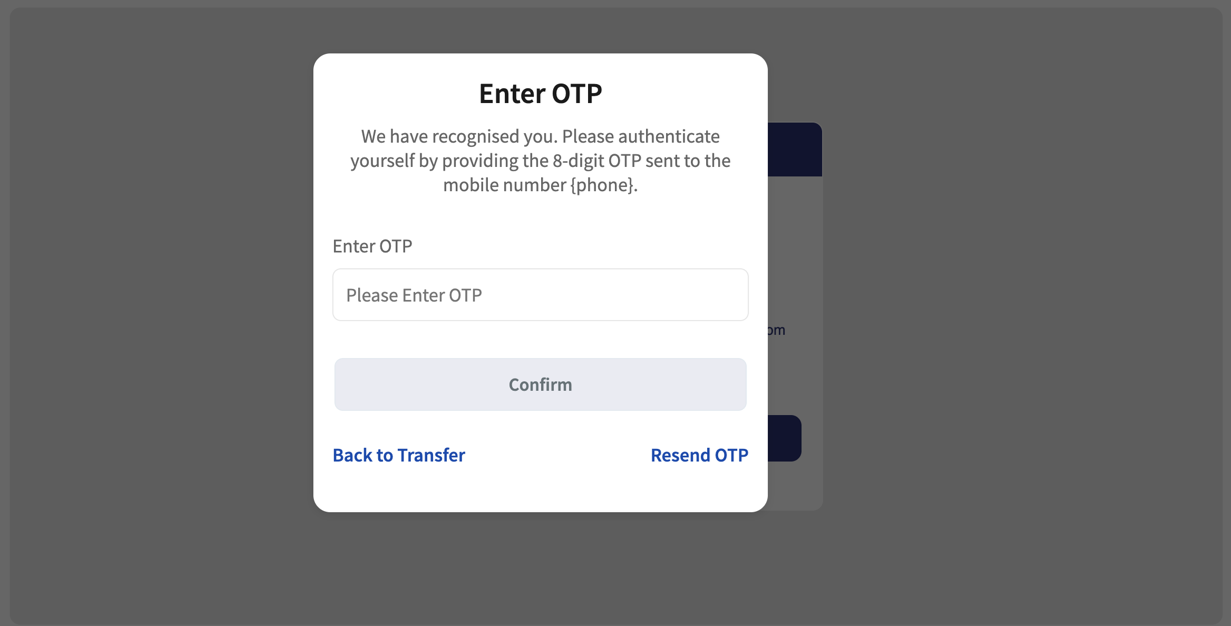

  3. The OTP input popup screen is displayed, enter the received OTP and click Confirm.

  4. The entered OTP is validated, and the callback response is passed to the form level for transaction processing.

    Once the transaction is successful, you will receive a Payment Success notification.

    Note:

    • If the Send OTP threshold is reached, an alert popup is displayed informing the user that the maximum number of OTP requests has been exceeded.

    • If an incorrect OTP is entered, an error message is displayed for the incorrect OTP.

    • If the Send OTP operation fails due to middleware issues, invalid parameters, or insufficient privileges, an error popup is displayed with "Resend OTP" and "Back to Transfer" options.

Object Services

ServiceName  DataModel  Mapping Purpose  Input Parameters Invoking

HIDTransactionSigning

SignatureValidation

validateSignature

Offline transaction signing that validates the Transaction details.

username,

password (Secure Code),

authType (Default)

ClientID  (Default)

HIDChallengeValidationService(1.0). signatureValidation

HIDTransactionSigning

ApproveTransactInitiate

approveTransactInitiate

Initiate the Push notification on the HID Approve device.

username

HIDTxnSigningApproveInit(1.0).initiate

HIDTransactionSigning

ApproveStatus

poll

Poll to the ApproveCallback service to get the status of the user's response to the HID Approve Push notification.

mfa_key (authRequest Id from the initiateApprove service response)

HIDPollConsensus(1.0).getHIDApprovalStatus
HIDTransactionSigning  Devices searchDevices Get the list of devices associated with the user. username HIDSearchDevices(1.0).getDevices
HIDTransactionSigning  GetHostAndTenant getServiceURL Fetches Host and Tenant Values from Server Settings. NA HIDGetHostAndTenant(1.0).getServiceURLAndDomain
HIDAuthService OTPRequest sendOTP Used to send the OTP. username, AuthenticationType HIDSendOTPService (1.0).sendOTP
HIDAuthService ValidateOtp validateOtp Used to validate the OTP.

username, password,

authType

HIDOTPServices (1.0).validateOOB
Utility CommunicationInformation getUserCommunicationInfo Fetch the Infinity user details such as email and MobileNumber to show on Screen when the OTP factres selected and used to send the OTP. userName T24ISExtra (1.0).getUserCommunicationDetailsPreLogin

Fabric Services

Names  Operation Name  Service Type  Description

HIDClientIdentity

-

Identity

Fetches the Client Bearer Token.

HIDClientAuthIdentityWrapper

getClientBearerToken

Integration

IntegrationWrapper of ClientIdentity.

HIDDependencyManager



Integration

Resolves the dependencies for HIDProcessor.jar.

HIDTxnSigningApproveInit

Initiate

Integration

Sends an HID Approve Push notification to the user's registered device.

HIDPollConsensus

getHIDApprovalStatus

Integration

Java service to fetch the callback response of the HID Approve Push notification.
HIDChallengeService generateChallenge  Integration Service generates a Secure Code .
HIDChallengeValidationService  validate  Integration Validates the Secure Code obtained from the HID Approve app after validating challenge Secure Code.

HIDChallengeValidationService

signatureValidation

Integration

Validates the transaction details with the Secure Code obtained from the HID Approve app.
SearchServices searchDeviceAuth Integration Lists the devices associated with the user.
GetHostAndTenant getServiceURLAndDomain Integration Fetches Host and Tenant Values from Server Settings
HIDSendOTPService sendOTP Integration Used to send the OTP .
HIDOTPServices validateOOB Integration Used to validate the OTP.
T24ISExtra getUserCommunicationDetailsPreLogin Integration Note: Temenos Integration Service Fetch the Infinity user details such as email and MobileNumber to show on Screen when the OTP factors selected and used to send the OTP.
HIDOTPServiceKMSOrch generateAndSendOTPAppliance Orchestration Used to generate OTP and send otp via Temenos KMS Service in HID Appliance.
HIDOTPServiceKMSOrch generateAndSendOTPAuthService Orchestration Used to generate OTP and send otp via Temenos KMS Service in HID Auth Cloud environment .

Listener Endpoints (HTTP Servlets)

Name  URL Purpose  Dependencies

ApproveCallBackEndpoint

https://hidglobaltest.konycloud.com:443/services/ApproveCallBackEndpoint

Listen to the callback response sent by the HID Authentication Service for the user's response to the HID Approve Push notification.

  1. Value of Server Property : HOST

  2. Set the value of ATR_CIBACB attribute for the client to the url (Column 2) in the HID Authentication Service.

  3. Set the value of "hid_ciba_callback_format_plain" to false for the client in the HID Authentication Service using the Register API.

Transaction Signing Pre/Post Processors

Names  Description  Used by (ServiceName-Operation)

TransactioSigningApprovePreprocessor

Forms the payload for the HID Approve Push notification.

HIDTxnSigningApproveInit - initiate
SignatureValidationPreprocessor Updates custom AuthType if configured. HIDChallengeValidationService - signatureValidation
AddCorrelationIdPreProcessor Adds the correlation ID to the API request to keep track of flow. HIDChallengeValidationService  - signatureValidation
TDSTemplatePreProcessor Used to update the Infinity tds message from Temenos OOTB services. HIDTxnSigningApproveInit - initiate
OOBAuthenticatorPreprocessor Updates custom AuthType if configured. HIDOTPServices - validateOOB
CheckUsernameFromSession Passes the username from the session to the request. HIDSearchServices - SearchUserAuth
SearchDeviceAuthPreProcessor Checks the user exists or not. HIDSearchServices - SearchDeviceAuth
TransactionSigningApprovePostProcessor Checks the auth_req_id and push it into cache. HIDTxnSigningApproveInit - initiate
GetDevicesOrchPostProcessor Checks the Auth_Key cache is present else throws error response. HIDSearchDevices - searchDevices
SearchUserAuthPostProcessor Checks the user exists or not. HIDSearchServices - SearchUserAuth
