Authenticate with the Resource Owner Password

This method does not require end user interaction with the ActivID AS server authentication portal. Instead, the OpenID client needs to pass the end user’s password.

1. Create an OpenID credential client (public client is not supported):

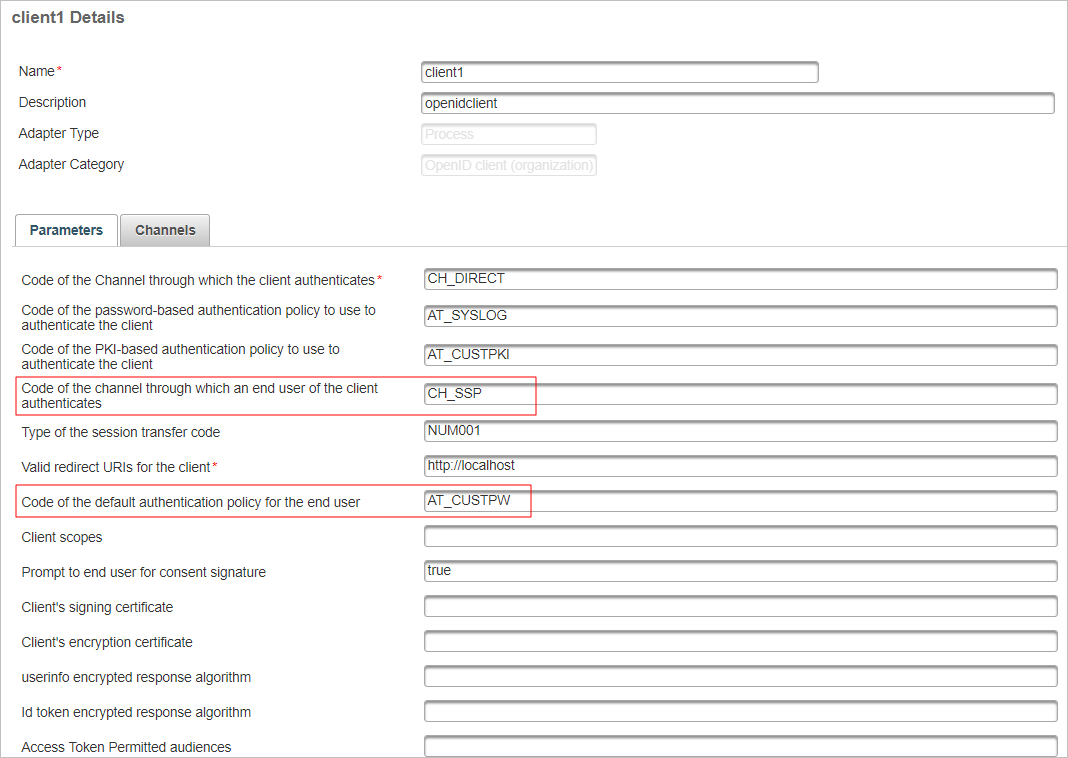

   The client’s configuration indicates the end user’s authentication policy and authentication channel.

   1. Log on to the ActivID Management Console as an ActivID Administrator (for example, ftadmin).

   2. In the Configuration tab, under Environment, select Adapters and click Add (see Create an OpenID adapter – with same name as the “OpenID administrator).



   3. Select the Access Administration tab and, under User Organization, select Administration Groups.

   4. Click on the name of the System Users group (the Administration Group of the ‘OpenID client’).

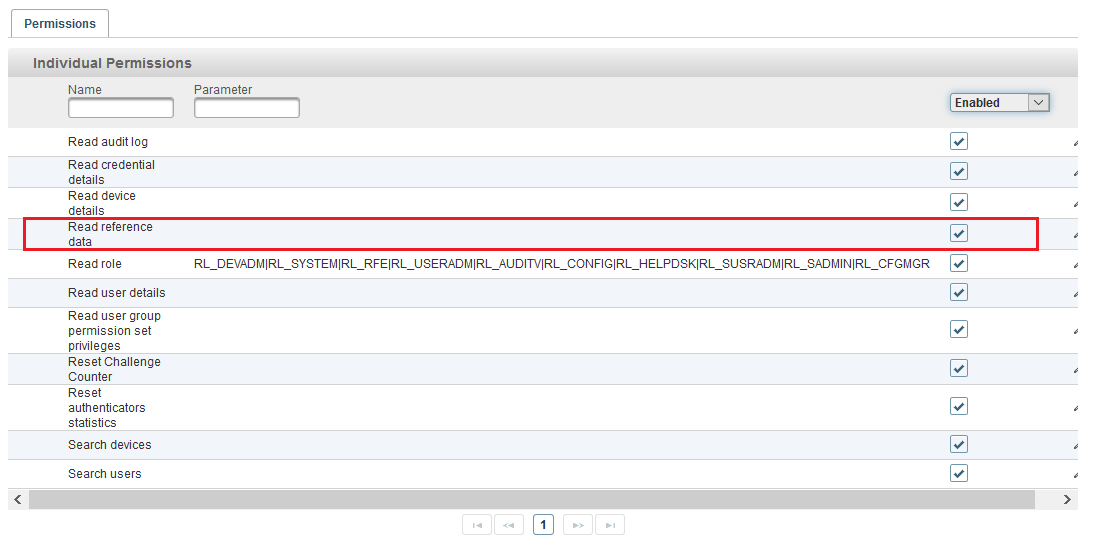

   5. Select the Permissions tab, and verify that the Read Reference Data permission is assigned to the group.

2. Authenticate the OpenID client:

   Use the client’s authentication method to authenticate the client and get the bearer token.

   Copy

   Sample request (PKI authentication via TLS)

   POST https://[base-server-url]/{tenant}/authn/token HTTP/1.1
   Content-Type: application/x-www-form-urlencoded

   grant_type=urn:hid:oauth:grant-type:client-secret-pki&client_id=client1

   Copy

   Sample response

   HTTP/1.1 200 OK
   Cache-Control: no-store
   Content-Type: application/json;charset=UTF-8

   {
      "access_token": "m8kwawAAAWWLVMh0jZ1DXLwiTag2nsC6iWdH5wcb",
      "context": {"LEVEL_OF_ASSURANCE": "2"},
      "token_type": "Bearer",
      "expires_in": 84600
   }

3. Authenticate the end user:

Send a token request to the token endpoint with the end user’s password to authenticate the end user.

The client’s access token (obtained in previous step) will be passed as the bearer token in the request’s Authorization header.

Copy

Sample request

POST https://[base-server-url]/{tenant}/authn/token HTTP/1.1Content-Type: application/x-www-form-urlencoded
Authorization: Bearer m8kwawAAAWWP5P7bvsa1uHG2Il1aw6sp6Zyt+GwV

grant_type=password&username=test01&password=password01

Copy

Sample response

HTTP/1.1 200 OK
Content-Type: application/json;charset=UTF-8

{
   "access_token": "TXsPRQAAAWWP7PDvMVoitWv4cFjqAd12FBUtD9ik",
   "context": {"LEVEL_OF_ASSURANCE": "1"},
   "token_type": "Bearer",
   "expires_in": 3600
}

4. Use of the end user’s bearer access token by the OpenID Connect API:

   Copy

   Sample request

   GET {tenant}/authn/userinfo HTTP/1.1
   Authorization: Bearer TXsPRQAAAWWP7PDvMVoitWv4cFjqAd12FBUtD9ik

   Copy

   Sample response

   HTTP/1.1 200 OK
   Content-Type: application/jwt;charset=UTF-8

   eyJraWQiOiIxNTM0NDI5MTA0Njg1IiwiYWxnIjoiUlMyNTYifQ.eyJzdWIiOiJ0ZXN0MDEiLCJncm91cGlkcyI6WyJVU0dfQ1VTVDEiXSwicm9sZXMiOltdLCJwcmVmZXJyZWRfdXNlcm5hbWUiOiJ0ZXN0MDEifQ.mlQx6NcCJ4yaAOufq8gY_AP7CeykC0utAd6nibCe1lBOJ-2p-Jj_F4uCVBoY0vpzEsGtn6z2oQPvTHl48gjSSSXtsm8LQSotWPIq-kRBmwuOUkHgg1qKx-u1SHeLm-XM8mN8Iv6YZ_qylvLrahXo9H6ypWHhgcpo4osBy0NcWObgP_2dAVyB0KxJ4RdIOLEzn2iOi_pyTKmxcx_JSV8nm4F1sit1VS8tN8xbbVqBpHEfA_0Bvtij3RhILKzCkd0BOaFfv3bks70UM170fcBfPRB597tpkM5FSkatgY9O4xGpv64_X0CthMbdlb6F6vNmZualSMJhnygAA2VBdHa25A

Copy

Where the payload in the JWT of the response is

{
  "sub": "test01",
  "groupids": [
    "USG_CUST1"
  ],
  "roles": [],
  "preferred_username": "test01"
}

5. Revoke the end user’s bearer access token:

   Copy

   Sample request

   https://[base-server-url]/{tenant}/authn/revoke HTTP/1.1
   Content-Type: application/x-www-form-urlencoded
   Authorization: Bearer m8kwawAAAWWQD1MgvVmT6VT5TqfuDBguk04wzX5n

   token=TXsPRQAAAWWQEGEv%2B3aQ6sodLAYUpPPzZK%2BOwX9B&client_id=client1

Copy

Sample response

HTTP/1.1 200 OK
